Maxlong Steel Pvt. Ltd. Factory –China Factory price central loose tube Stainless steel tube cable – FCJ OPTO Detail:

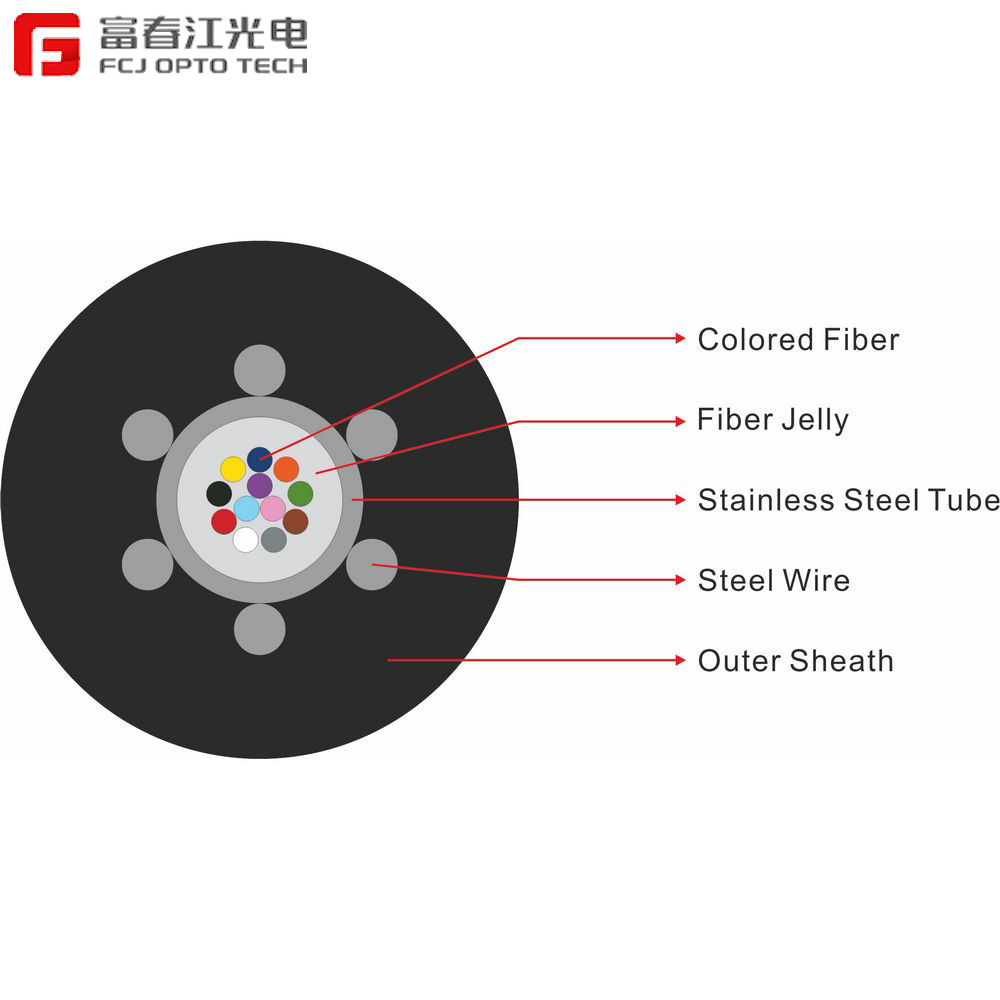

Construction
Single mode, multimode fiber optical cable, maximum of 24 cores
F-SST
LSZH, PE, or PA jacketing, anti-ultraviolet radiation
Steel wire or wire rope strengthening
Characteristics
Small size and low weight
Good mechanical performance, withstanding the tensile force and force and super pressure
Waterproof, moisture-proof, anti-rodents,no rusty
Resistance to acid, alkali, salt corrsion
Outstanding high and low temperature performances
Application
Indoor cabling
Pipe laying
Ground slot laying
Temperature sensing cable
Fire monitoring
Temperature Range
Operating temperature: -60~+80℃
Storage temperature: -60~+80℃
Static=10D
Dynamic=20D
Replacement
GYXTC8S, GYTC8S
Construction
Single mode, multimode fiber optical cable, maximum of 24 cores
F-SST
LSZH, PE, or PA jacketing, anti-ultraviolet radiation
Steel wire or wire rope strengthening
Characteristics
Small size and low weight
Good mechanical performance, withstanding the tensile force and force and super pressure
Waterproof, moisture-proof, anti-rodents,no rusty
Resistance to acid, alkali, salt corrsion
Outstanding high and low temperature performances
Application
Indoor cabling
Pipe laying
Ground slot laying
Temperature sensing cable
Fire monitoring
Temperature Range
Operating temperature: -60~+80℃
Storage temperature: -60~+80℃
Min.Bending Radius
Static=10D
Dynamic=20D
Replacement
GYXTC8S, GYTC8S
| Fiber counts | size | Cable weight | Allowable tensile force (N) | Allowing crush force (N) | ||
d | d1 | t | kg / km | Long-term / short-term | Long-term / short-term | |
2 | 1.20 | 1.20 | 1.00 | 31.88 | 1000/2000 | 2500/5000 |
4 | 1.35 | 1.35 | 1.00 | 36.62 | 1250/2500 | 2000/4000 |
6 | 1.50 | 1.50 | 1.00 | 44.42 | 1500/3000 | 2000/4000 |
8 | 1.75 | 1.75 | 1.00 | 53.37 | 1750/3500 | 2000/4000 |
12 | 2.00 | 2.00 | 1.00 | 57.43 | 1750/3500 | 1000/2000 |
