ODM Famous China Quick Connector Manufacturer –GJSFJV Distribution Armored Indoor Drop Cable For Italy Cabling Systems – FCJ OPTO Detail:

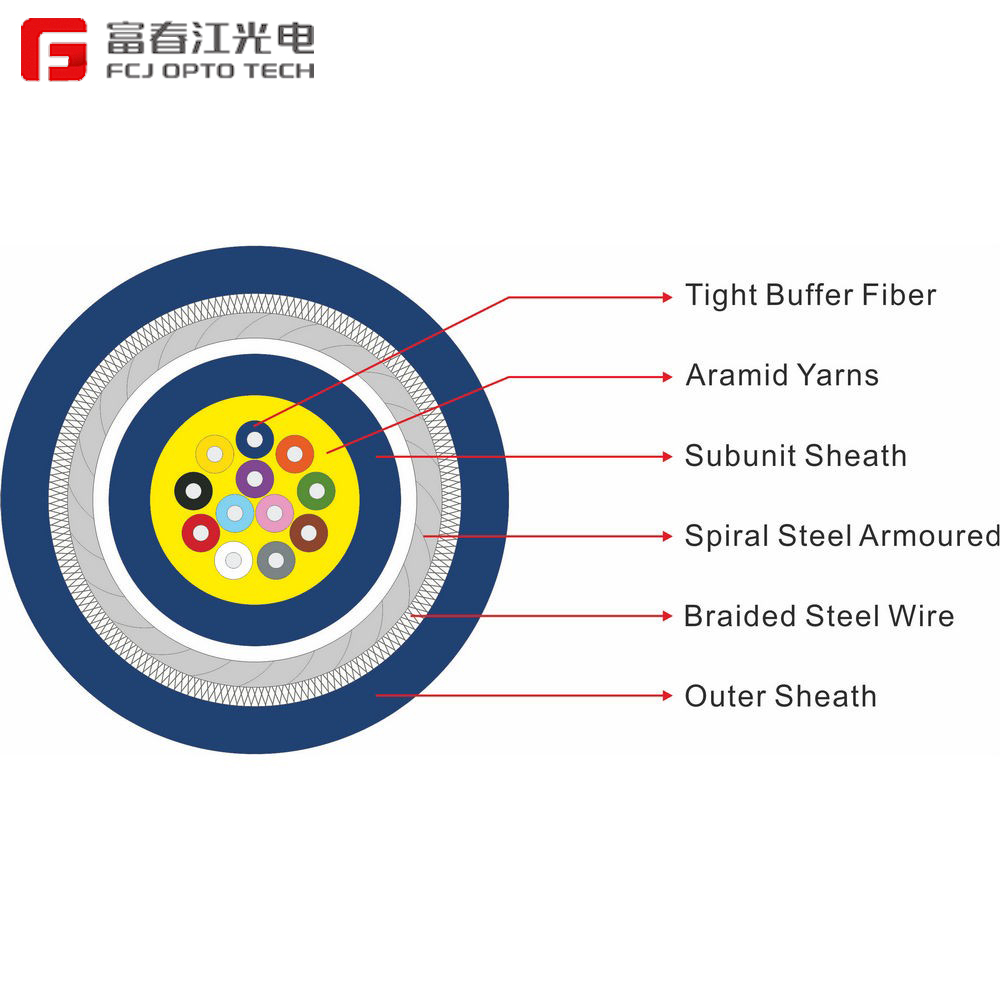

Characteristics

·Multi fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent
·High strength aramid yarn,high performance outer sheath
·Small radius, light weight,flexibility,and friendly installation.
·Good mechanical and environmental performance.
·Flame retardant outer sheath provide good safety.

Application

·All kinds of connector
·Fiber optic pigtails, patch cords.
·Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
·Fiber optic equipment and instrument
·Indoor cabling,building cabling,LAN, etc
·Long distance, outdoor/indoor cabling, trunking,etc
·Backbone network to the equipment in the building
· Small installation space cabling

Standards
·GJSFJV cable comply with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR, OFNP.

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth （ClassA）	@850			≥500MHZ·km	≥500MHZ·km
Bandwidth （ClassA）	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Tight Diameter mm	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
GJFJV+SV	2	0.6	5.0	42	300/750	200/1000	20D/10D
GJFJV+SV	4	0.6	6.0	65	300/750	200/1000	20D/10D
GJFJV+SV	6	0.6	6.0	66	300/750	200/1000	20D/10D
GJFJV+SV	8	0.6	6.0	68	300/750	200/1000	20D/10D
GJFJV+SV	12	0.6	6.0	70	300/750	200/1000	20D/10D

Storage/Operating Temperature : -20℃ to + 60℃
