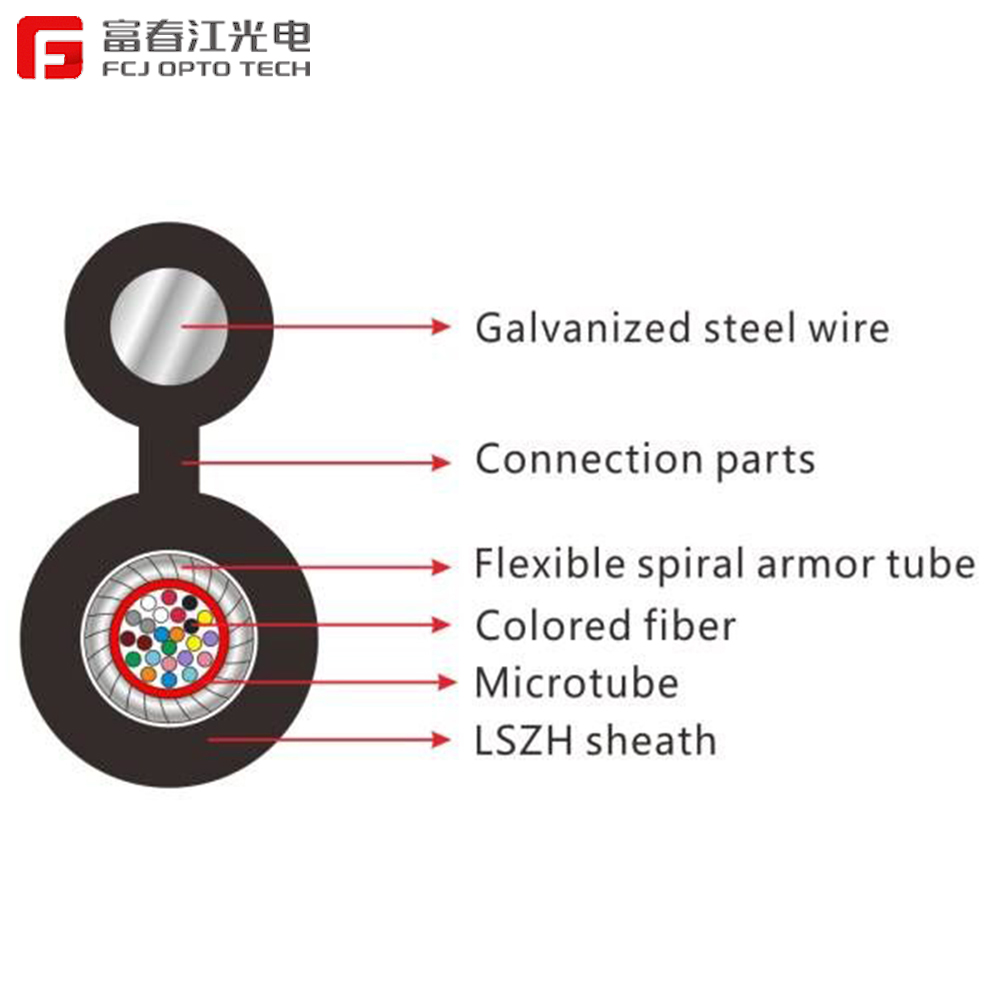

ODM Famous Ftth Drop Cable Patch Cord Supplier –GYXTC8KH China Factory Long And Stability Transmission Fibra Optica Drop Cable – FCJ OPTO Detail:

Characteristics

·Accurately controlling the residual length of optical fiber ensures good tensile properties and temperature characteristics of optical cable
·PBT loose tube material has good resistance to hydrolysis, filled with special ointment to protect the optical fiber
·Fiber optic cable is non-metallic structure, light weight, easy laying, anti-electromagnetic, lightning protection effect is better
· Larger number of core than ordinary butterfly-shaped optical cable products, suitable for access to more densely populated villages
·Compared with butterfly-shaped optical cable, runway structure products have stable optical transmission performance with no risk of water accumulation, icing and egg cocoon
·Easy to peel, reduce the time of pulling out the outer sheath, improve the construction efficiency
·It has the advantages of corrosion resistance, UV protection and environmental protection

Standards
·YD / T769-2010, GB / T 9771-2008, IEC794 and other standards
·In addition to ordinary PE products, if LSZH products choose different materials, can meet IEC 60332-1 or IEC 60332-3C certification

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.5dB/km	≤3.5dB/km
	@1300nm			≤1.5dB/km	≤1.5dB/km
	@1310nm	≤0.45dB/km
	@1550nm	≤0.30dB/km	≤0.30dB/km
Bandwidth （Class A）	@850			≥500MHZ·km	≥200MHZ·km
Bandwidth （Class A）	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical aperture				0.200±0.015NA	0.275±0.015NA
Cable Cutoff Wavelength		≤1260nm	≤1480nm

Technical Parameters

Cable type	Fiber Count	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
GYFXTBY-1~12	1~12	4.5*8.5	46	400/1200	300/1000	30D/15D

Storage/Operating Temperature : -20℃ to + 60℃
