China Factory for Fiber Optic Wire Repair - GJFJH Break-Out 48 Core LSZH OM3 Indoor Break-Out Fiber Optic Cable – FCJ OPTO Detail:

Characteristics

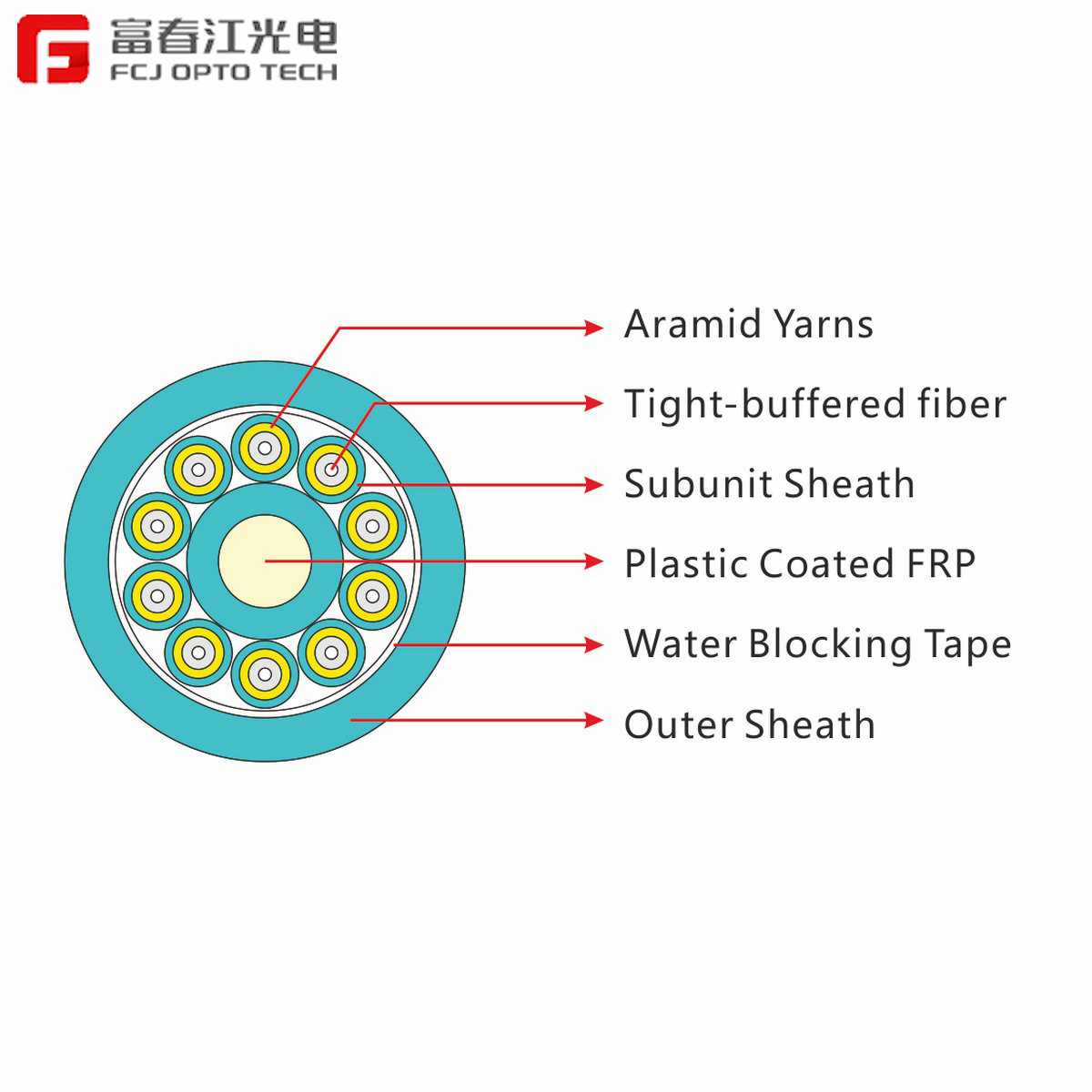

·Each sub cable contains aramid yarn,good bend performance,without gel,cleaning friendly,easy construction and connection.
·Tight buffer fiber with single strength member and sheath to overcome the effect from bad environment and Mechanical stress.
·LSZH sheath,anti-retardant,Self-extinguishing,Suitable for machine room, cable shaft and used in indoor environment such as wiring inside the wall.
·LSZH sheath,UV,Waterproof mildew,ESCR,No acid gas release,non-corrosive room equipment, suitable for indoor and outdoor use or need a high flame-retardant grades of the indoor environment (such as wiring in the ceiling, open wire cabling etc.)

Application

·Indoor horizontal wiring, vertical wiring in buildings, LAN network.
·Standard core can be directly apply to connectors,to use for device connecting
·Used as a backbone cable tail can access directly from the indoor and outdoor to save the junction box, isolated lightning, improve system reliability.

Standards
·GJFJHV cable complies with Standard YD/T1258.4-2009、ICEA-596、GR-409、IEC794 etc; and meets with the requirements of UL approval for OFNR.

Technical Parameters

Fiber Count	Subunit Diameter mm	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
2	2.0	7.0±0.5	45	500/1000	400/800	30D/15D
4	2.0	7.0±0.5	45	500/1000	400/800	30D/15D
6	2.0	8.3±0.5	62	500/1000	400/800	30D/15D
8	2.0	9.4±0.5	85	500/1000	400/800	30D/15D
10	2.0	10.7±0.5	109	500/1000	400/800	30D/15D
12	2.0	12.2±0.5	140	500/1000	400/800	30D/15D

Environmental Characteristics

Transport Temperature	－20℃～＋60℃
Storage Temperature	－20℃～＋60℃
Installation Temperature	－5℃～＋50℃
Operating Temperature	－20℃～＋60℃
