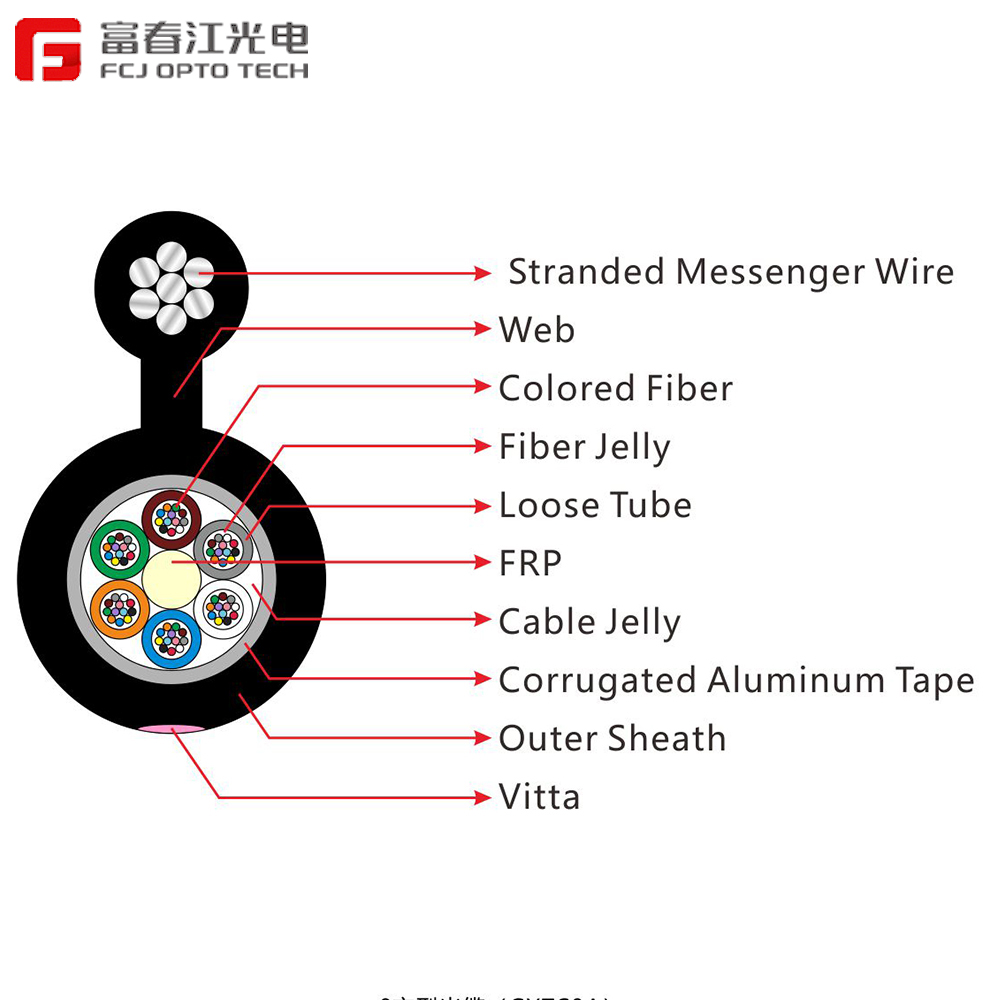

Customized Duplex Patch Cord Suppliers –GYTC8A Outdoor Figure-8 Aerial Fiber Optic Cable With Aluminium Corrugated Tape – FCJ OPTO Detail:
Characteristics
· High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
- APL moisture barrier
Standards
GYTC8A cable complies with Standard YD/T 1155-2001 as well as IEC 60794-1.
Optical Characteristics
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
@1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
@1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
@1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
Technical Parameters
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diametermm | Cable Weight kg/km | Tensile StrengthLong/ShortTerm N | Crush ResistanceLong/Short TermN/100mm | Bending RadiusStatic/Dynamicmm |
| GYTC8A-2~6 | 2~6 | 1 | 4 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8A-8~12 | 8~12 | 2 | 3 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8A-14~18 | 14~18 | 3 | 2 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8A -20~24 | 20~24 | 4 | 1 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
| GYTC8A-26~30 | 26~30 | 5 | 0 | 9.5×18.3 | 218 | 600/1500 | 300/1000 | 10D/20D |
Storage/Operating Temperature : -40℃ to + 70℃
