Customized Fiber Optic Cable Accessories Manufacturers –GJSFJV 2 Fiber Armored Indoor Drop Cable Space Cabling Mixed Branch High-Quality Aramid – FCJ OPTO Detail:

Characteristics

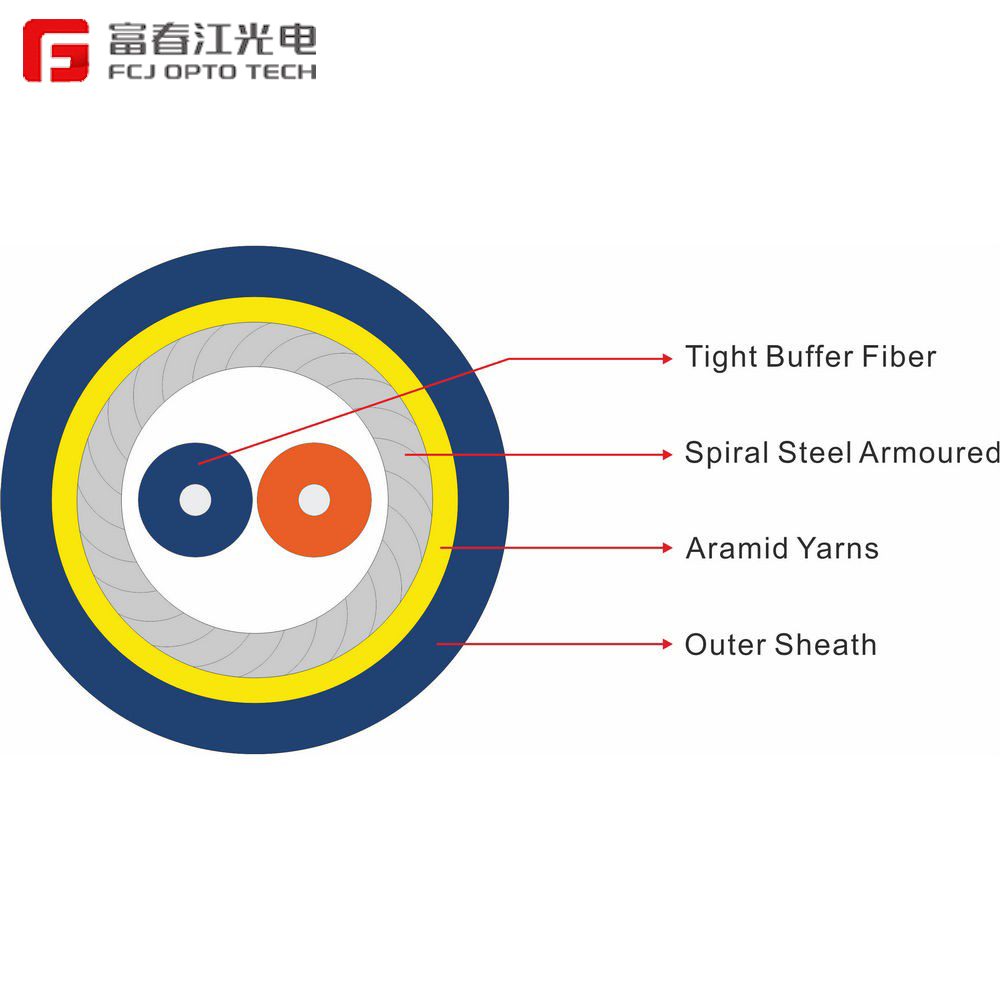

·2 fiber armored optical fiber cable has a layer of stainless steel wires enhance the crush resistance of the cable and anti-rodent
·Light weight,flexibility,and friendly installation.
·Good mechanical and environmental performance.
·Flame retardant outer sheath provide good safety.

Standards
·GJSFJV cable comply with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc; and meet the requirements of UL approval for OFNR, OFNP.

Application

·All kinds of connector
·Fiber optic pigtails, patch cords.
·Fiber optic equipment ,fiber optic patch panel,fiber to the desk,etc
·Indoor cabling,building cabling,LAN, etc
·Long distance, outdoor/indoor cabling, trunking,etc
·Backbone network to the equipment in the building
·Small installation space cabling

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth （Class A）	@850			≥500MHZ·km	≥500MHZ·km
Bandwidth （Class A）	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Technical Parameters

Cable Type

Fiber Count

Tight

Diameter
mm

Cable Diameter
mm

Cable Weight

Kg/km

Tensile Strength

Long/Short Term
N

Crush Resistance

Long/Short

Term
N/100m

Bending Radius
Static/Dynamic
mm

GJSFJV

0.6

3.2

300/750

200/1000

20D/10D

GJSFJV

0.9

4.0

300/750

200/1000

20D/10D

Storage/Operating Temperature : -20℃ to + 60℃
