Customized Figure-8 Fiber Optic Cable Manufacturer –GYFXTBY FRP Drop Cable FTTH Dry Core Cable G. 652D Or G. 657A1 Fiber Optic Cable – FCJ OPTO Detail:
Characteristics
·Accurately controlling the residual length of optical fiber ensures good tensile properties and temperature characteristics of optical cable
·PBT loose tube material has good resistance to hydrolysis, filled with special ointment to protect the optical fiber
·Fiber optic cable is non-metallic structure, light weight, easy laying, anti-electromagnetic, lightning protection effect is better
·Larger number of core than ordinary butterfly-shaped optical cable products, suitable for access to more densely populated villages
·Compared with butterfly-shaped optical cable, runway structure products have stable optical transmission performance with no risk of water accumulation, icing and egg cocoon
·Easy to peel, reduce the time of pulling out the outer sheath, improve the construction efficiency
·It has the advantages of corrosion resistance,UV protectionand environmental protection
Standards
·YD / T769-2010, GB / T 9771-2008, IEC794 and other standards
·In addition to ordinary PE products, if LSZH products choose different materials, can meet IEC 60332-1 or IEC 60332-3C certification
Optical Characteristics
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation | @850nm | ≤3.5dB/km | ≤3.5dB/km | ||
@1300nm | ≤1.5dB/km | ≤1.5dB/km | |||
@1310nm | ≤0.45dB/km | ||||
@1550nm | ≤0.30dB/km | ≤0.30dB/km | |||
Bandwidth（Class A） | @850 | ≥500MHZ·km | ≥200MHZ·km | ||
@1300 | ≥1000MHZ·km | ≥600MHZ·km | |||
Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable Cutoff Wavelength | ≤1260nm | ≤1480nm | |||
Technical Parameters
Cable type | Fiber Count | Cable Diameter | Cable Weight | Tensile Strength | Crush Resistance | Bending Radius |
GYFXTBY-1~12 | 1~12 | 4.5*8.5 | 46 | 400/1200 | 300/1000 | 30D/15D |
Storage/Operating Temperature : -20℃ to + 60℃

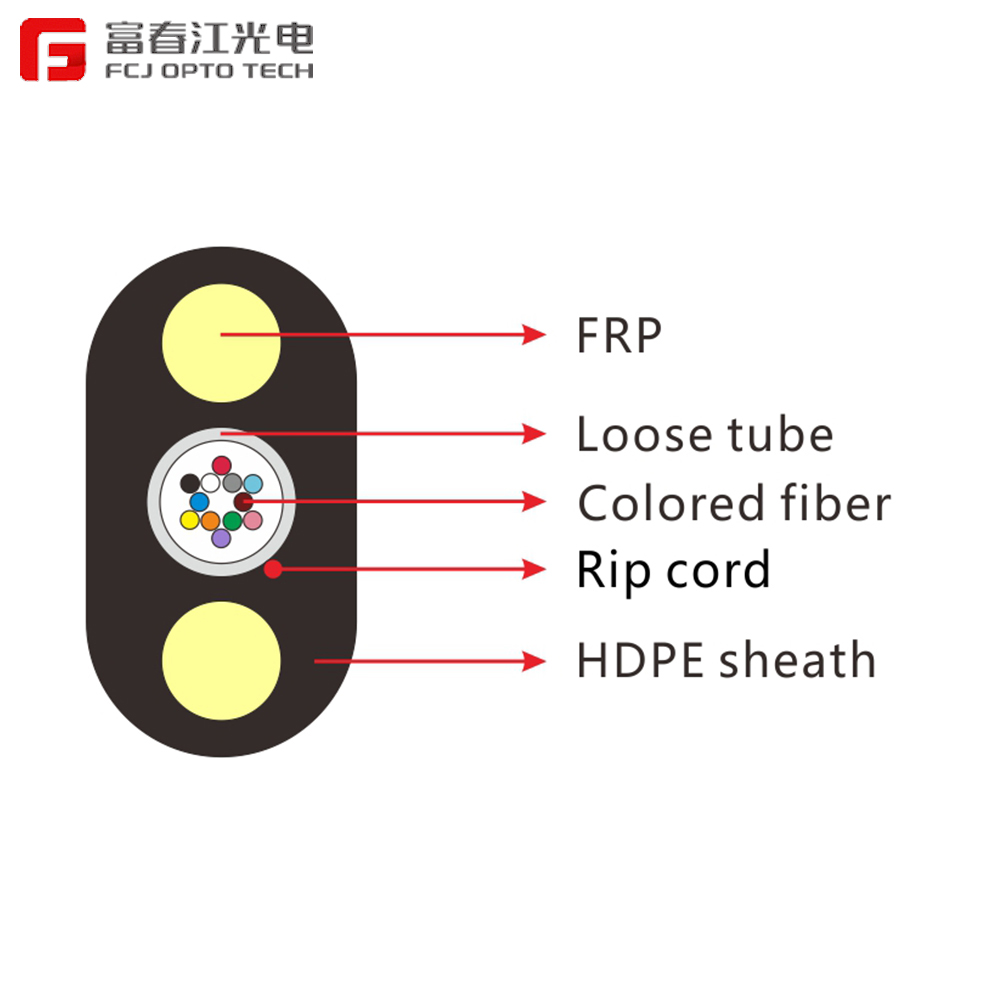

Product detail pictures:
