Customized FTTH Splitter Coupler Suppliers –Fiber Optic Splitter Cable Branching Device Single Mode FC/Upc Interface Telecom PLC Cassette/Rack Splitte – FCJ OPTO Detail:

Features

Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
YD/T 2000.1-2009
RoHS

singliemg

Product Details

1X N（N≥2）

PARAMETERS		1×2	1×4	1×8	1×16	1×32	1×64	1×128
Wavelength (nm)		1260～1650
Fiber type		G657A 1or custom-defined
Pigtail length(m)		1.0(±0.1) or custom-defined
Insertion loss (dB)		≤3.8	≤7.2	≤10.3	≤13.6	≤16.9	≤20.4	≤23.5
Loss uniformity(dB)	max	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤2.0
Return loss (dB)	minimum	55	55	55	55	55	55	55
PDL (dB)	max	≤0.2	≤0.2	≤0.3	≤0.3	≤0.4	≤0.4	≤0.4
Directivity	minimum	≥55
Wavelength related loss(dB)	max	≤0.6	≤0.6	≤0.6	≤0.8	≤1.0	≤1.0	≤1.2
Working temp. ( ℃)	-40～85
Store temp. ( ℃)	-40～85
bare fiber		40×4×4			50×7×4		60×12×4	1202610
ABS package size(LxWxH)mm		100×80×10			120×80×18		140×115×18	15013025
Mini package size(Lx W x H)mm		55×7×4			60×12×4	80×20×6	100×40×6	1205012

2X N（N≥2）

PARAMETERS		2×2	2×4	2×8	2×16	2×32	2×64	2×128
Wavelength (nm)		1260～1650
Fiber type		G657A 2 or custom-defined
Pigtail length(m)		1.0(±0.1) or custom-defined
Insertion loss (dB)		≤4.2	≤7.5	≤10.6	≤13.9	≤17.2	≤20.8	≤23.8
Loss uniformity(dB)	max	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8	≤2.0	≤2.0
Return loss (dB)	minimum	55	55	55	55	55	55	55
PDL (dB)	max	≤0.2	≤0.2	≤0.3	≤0.3	≤0.4	≤0.4	≤0.4
Directivity	minimum	≥55
Wavelength related loss(dB)	max	≤0.6	≤0.6	≤0.6	≤0.8	≤1.0	≤1.0	≤1.2
Working temp. ( ℃)	-40～85
Store temp. ( ℃)	-40～85
bare fiber		50×4×4			50×7×4		60×12×4	1202610
ABS package size(LxWxH)mm		100×80×10			120×80×18		140×115×18	15013025
Mini package size(LxWxH)mm		60×7×4			60×12×4	80×20×6	100×40×6	1205012

Remark: these datas not include connector loss,Each connector will add 0.25dB loss, each adapter will add extra 0.2dB loss

Application

● FTTH (Fiber to the home)
● Access/PON distribution
● CATV NETWORK
● High reliability/Monitoring/other Network systems

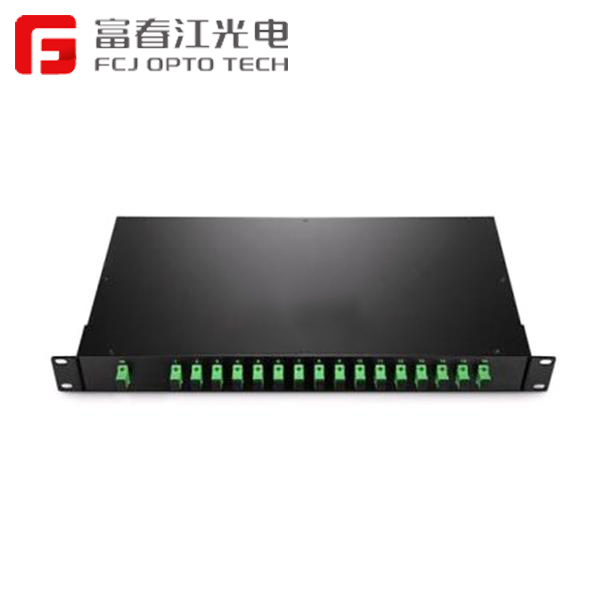

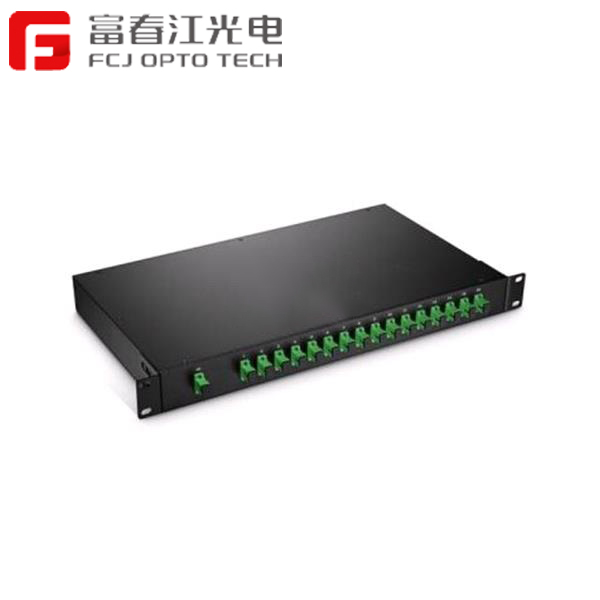

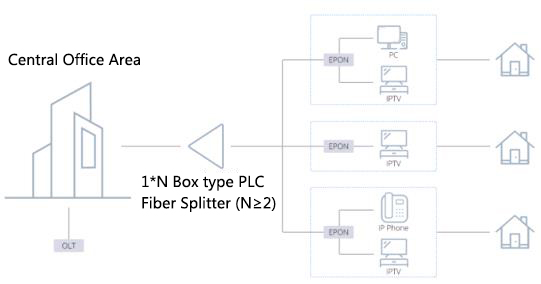

Rack type PLC type in Network systems Best Alternative for FTTx Solution: Being installed in an outside plant enclosure, PON splitter is used to distribute or combine optical signals, which gives carriers the ability to split optical signals to multiple homes or businesses.

4hhfg56hfdh
