Customized Patch Cord MPO 12 Port/Thread mm Om4 -Magenta Supplier –GYFXY Non-Metallic Unitube Non-Armored Gyfxy Fiber Optic Cable For Aerial Outdoor – FCJ OPTO Detail:

Characteristics

· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Two parallel FRPs ensure tensile strength
· PE sheath protects cable from ultraviolet radiation
· Small diameter, light weight and friendly installation
· Long delivery length

Standards
GYFXY cable complies with Standard YD/T 769-2003.

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Technical Parameters

Cable Type(Increased by 2 fibers)	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static/Dynamic mm
GYFXY -2~12	2~12	10.2	100	400/1000	300/1000	10D/20D

Storage/Operating Temperature : -40℃ to + 70℃

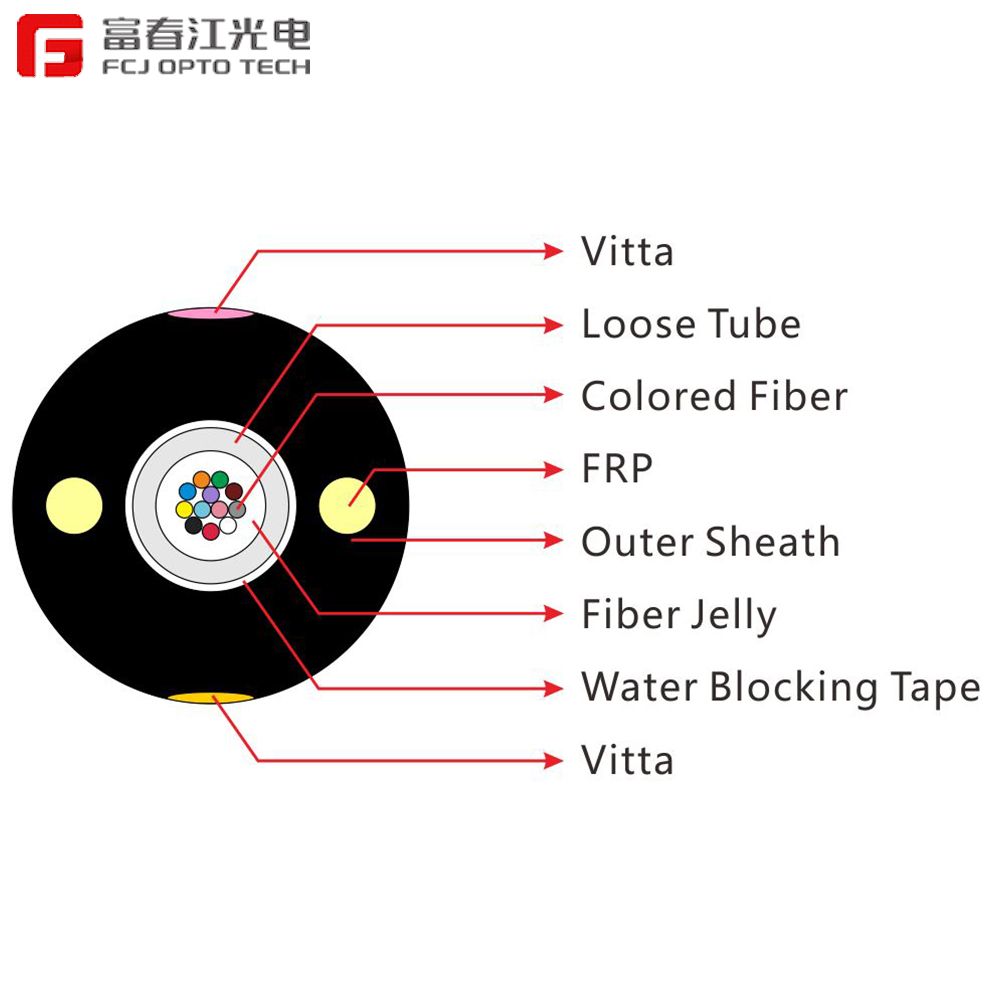

Product detail pictures:
