Discount Price Pak China Optical Fiber Project - Figure 8 Cable Aerial Self-Support Fiber Optical Cable Figure 8 Fiber Optic Cable 64 Core – FCJ OPTO Detail:

Characteristics

·Small diameter, light weight and friendly
·High tensile strength of aramid yarn meet the requirements of self-supporting and reduce the installation cost.
·Good mechanical and temperature performance.

Standards
·GJFJTC8Y cable complies with Standard YD/T11155-2011,YDT 1770-2008,IEC794 etc.

Optical Parameters

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth （Class A）	@850			≥500MHZ·km	≥500MHZ·km
Bandwidth （Class A）	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
GJFJTC8Y	2	3.5×5.5	19	200/400	100/200	30D/15D
GJFJTC8Y	4	4.0×6.0	26	200/400	100/200	30D/15D
GJFJTC8Y	6	5.0×7.0	30	200/400	100/200	30D/15D
GJFJTC8Y	8	6.0×9.0	32	200/400	100/200	30D/15D
GJFJTC8Y	12	6.5×9.5	40	200/400	100/200	30D/15D

·Storage/Operating temperature:-20℃～﹢60℃

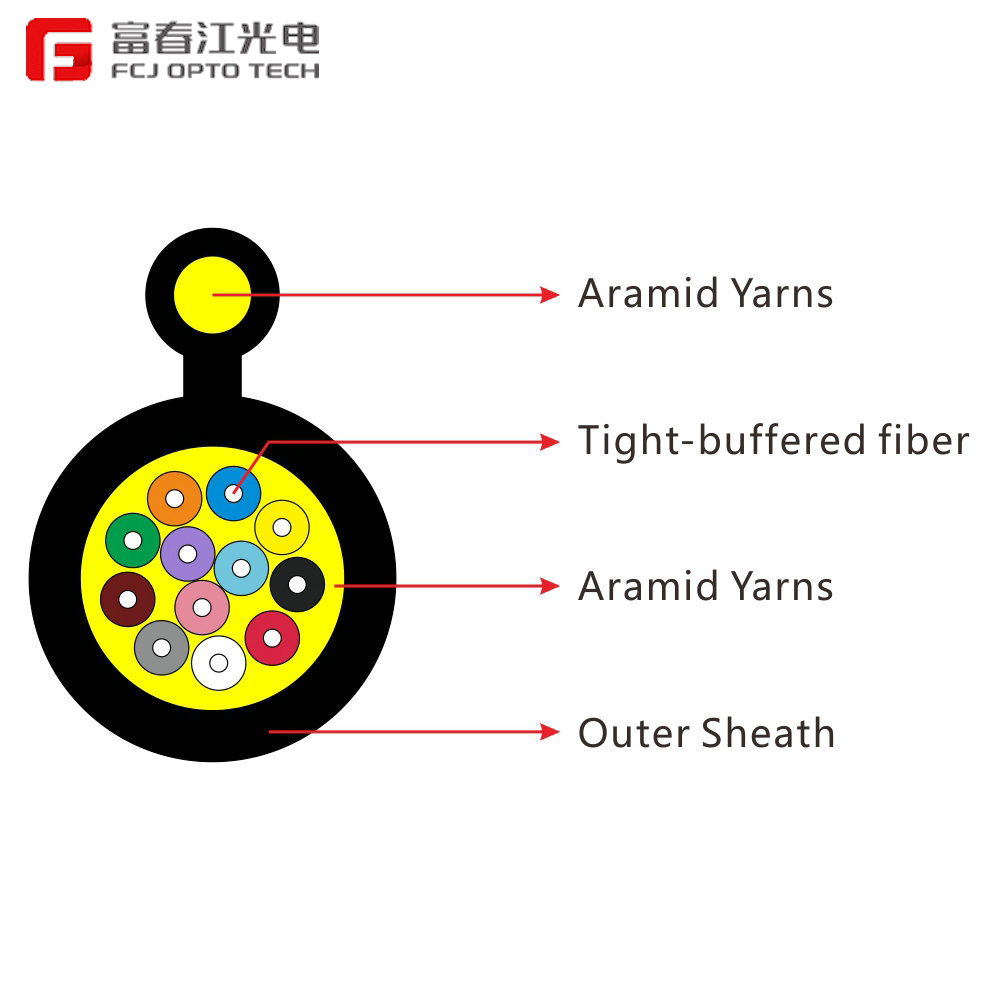

Product detail pictures:
