Factory Free sample Buried Fiber Optic Cable Depth - GJFJH53 12 24core Indoor Steel Armored Fiber Optic Cable G652 G655 With PE Sheath – FCJ OPTO Detail:

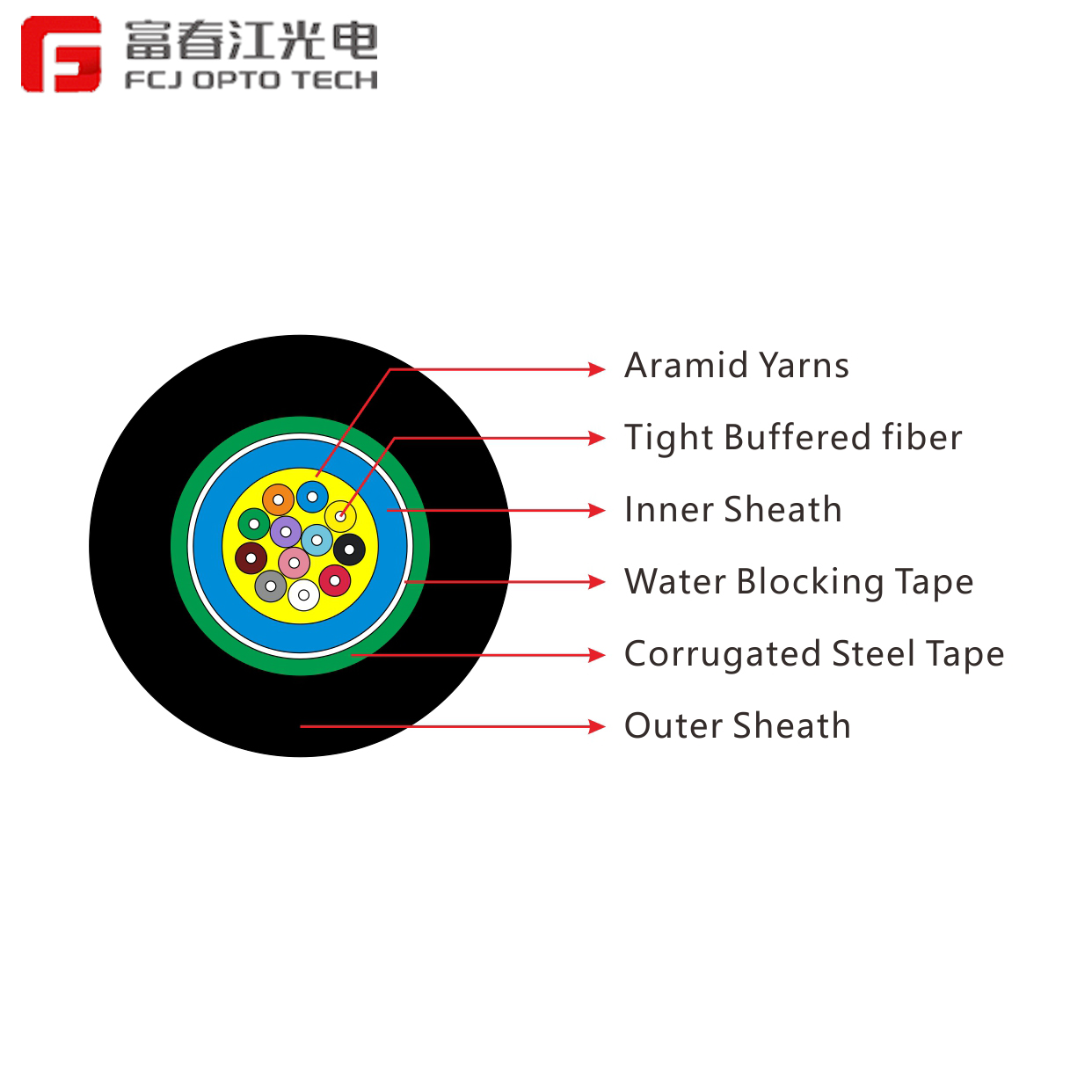

Characteristics

·Multicore fibers with armor outer jacket to enhance the attribute of crushing resistance and anti rodent.
·High strength aramid reinforced, high performance jacket material.
·Good mechanical and environment performance.
·Excellent Transverse water-blocking.

Standards
·GJFJH53 cable complies with standard YD/T1258.4-2003、GB/T13993 、IECA-596、GR-409、IEC794 and other standards.

Optical Parameters

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth>（Class A）	@850			≥200MHZ·km	≥200MHZ·km
Bandwidth>（Class A）	@1300			≥500MHZ·km	≥500MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable cut-off wavelength		≤1260nm	≤1480nm

Technical Parameters

Cable Type

Fiber Count

Tight Buffer

Diameter
mm

Cable Diameter
mm

Cable Weight
Kg/km

Tensile Strength
Long/Short Term N

Crush Resistance
Long/Short Term N/100m

Bending Radius
Static/Dynamic
mm

GJFJH53

0.9

12.5

124

400/800

200/1000

30D/105D

GJFJH53

0.9

13.5

158

400/800

200/1000

30D/105D

·Storage/Operating Temperature:－20℃ to ＋60℃
