GJYXFFCH Aramid FTTH Drop Optical Cable with LC Upc APC Patch Cord Abilities

GJYXFFCH Aramid FTTH Drop Optical Cable with LC Upc APC Patch Cord Abilities
  • GJYXFFCH Aramid FTTH Drop Optical Cable with LC Upc APC Patch Cord Abilities
  • GJYXFFCH Aramid FTTH Drop Optical Cable with LC Upc APC Patch Cord Abilities

Short Description:

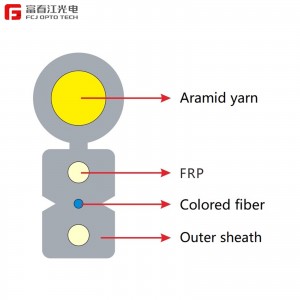

GJYXFFCH Aramid cable takes the colored fiber (single mode or multi-mode fiber) as the signal transmission unit, and the two sides of the cable are respectively placed with a non-metal reinforcement to form a square structure. At the same time, the high strength aramid yarn is used as the reinforcement to play a self-supporting overhead effect, and on this basis, a flame retardant polyolefin material is extruded to form a outer sheath.



Product Detail

Product Tags

Unveiling Fcjoptic's cutting-edge GJYXFFCH Aramid FTTH Drop Optical Cable, expertly crafted with the LC Upc APC Patch Cord technology. This innovative product showcases not only a sleek design but also a small outer diameter, which is one of its core characteristics. The compactness of this product is its most striking feature, perfectly catering to the modern needs of streamlined technology. Its reduced size, however, does not compromise its performance. Equipped with a self-supporting member, this product possesses a robust and resilient design. The Featured LC Upc APC Patch Cord technology significantly enhances the overall functionality of this optical cable, delivering optimized performance in all conditions. This technology contributes to high-speed data transmission and seamless connectivity that every modern user seeks.

Characteristics

·The outer diameter of the product is small. Compared with the traditional self-supporting outdoor 8-figure cable, the weight is lighter and the installation is more convenient ;
·It has high pressure resistance and tensile resistance, and can stand a certain wind speed；
·Specific V-shaped cable is convenient for stripping and field installation ;
·The outer sheath is made of flame retardant material, which can meet the requirements of flame retardant grade and environmental performance of outdoor optical cable.

Standards
•YDT 1997.1-2014 Access optic-fiber cables for communications – Part 1: Butterfly optical cables, IEC-60332 standard.

Optical Characteristics




G.652

G.657

50/125μm

62.5/125μm

Attenuation
(+20℃)

@850nm

 -

  -

≤3.5dB/km

≤3.5dB/km

@1300nm

  -

  -

≤1.5dB/km

≤1.5dB/km

@1310nm

≤0.34dB/km

≤0.34dB/km

  -

  -

@1550nm

≤0.22dB/km

≤0.22dB/km

 -

  -

Bandwidth
（Class A）

@850

 -

 -

≥500MHZ·km

≥200MHZ·km

@1300

  -

  -

≥1000MHZ·km

≥600MHZ·km

Numerical    aperture

 -

  -

  -

0.200±0.015NA

0.275±0.015NA

Cable Cutoff    Wavelength

 -

≤1260nm

≤1260nm

  -

 -

Technical Parameters

Cabletype

Fiber Count

Cable Diameter
mm

Cable Weight

Kg/km

Tensile Strength

 Long/Short

Term N

Crush Resistance

Long/Short

Term

N/100m

Bending Radius

Static/Dynamic
mm

GJYXFFCH-1~2

1~2 core

2.5*5.65

19.4

500/1000

1000/2200

30D/15D

Storage/Operating Temperature : -40℃ to + 70℃

  • Previous:
  • Next:


    • The built-in Aramid yarn within the cable delivers multiple advantages such as superior strength and resilience, making it a reliable solution for long-term applications. This FTTH drop optical cable is a blend of advanced technology and convenience, making it an ideal investment for those seeking to upgrade their current cable systems. With the LC Upc APC Patch Cord technology, this product ensures not only improved data transmission but also maximum value. The GJYXFFCH Aramid FTTH Drop Optical Cable with LC Upc APC Patch Cord is a testament to Fcjoptic's dedication to innovation and quality. By integrating this cable into your system, you can expect enhanced performance, resilience, and a sleek design that fits into any setting. At Fcjoptic, we ensure that we always exceed the expectations of our customers by delivering products that blend performance, durability, and design. Experience smooth, uninterrupted connectivity with our high-tech GJYXFFCH Aramid FTTH Drop Optical Cable featuring LC Upc APC Patch Cord technology.
