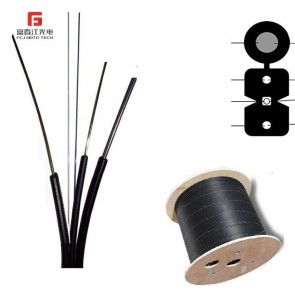

High-Quality FTTH Indoor Optical Cable Enhanced with KFRP Strength
Characteristics
· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication
transmission property;
· Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
· Single steel wire or messenger as the additional strength member ensures good performance of tensile strength;
· Simple structure, light weight and high practicability;
· Novel flute design, easily strip and splice, simplify the installation and maintenance;
· Low smoke, zero halogen and flame retardant sheath.
Optical Characteristics
| G.652 | G.657 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.5 dB/km | ≤3.5 dB/km | ||
| @1300nm | ≤1.5 dB/km | ≤1.5 dB/km | |||
| @1310nm | ≤0.40 dB/km | ≤0.40 dB/km | |||
| @1550nm | ≤0.30 dB/km | ≤0.30dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥500 MHz·km | ≥500 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1260nm | |||
Technical Parameters
| Fiber count | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static /Dynamic mm |
| 1 | (2.0±0.)×(5.0±0.2) | 20 | 300/600 | 1000/2200 | 20/40 |
| 2 | (2.0±0.2)×(5.0±0.2) | 20 | 300/600 | 1000/2200 | 20/40 |
| 4 | (2.0±0.2)×(5.0±0.2) | 20 | 300/600 | 1000/2200 | 20/40 |
| 6 | (2.5±0.2)×(6.0±0.2) | 24 | 300/600 | 1000/2200 | 20/40 |
| 8 | (2.5±0.2)×(6.0±0.2) | 24 | 300/600 | 1000/2200 | 20/40 |
| 12 | (2.0±0.)×(5.0±0.2) | 20 | 300/600 | 1000/2200 | 20/40 |
Storage/Operating Temperature : -20℃ to + 60℃
For us at Fcjoptic, safety always comes first. We've made sure that our Indoor Optical Cable includes a low smoke, zero halogen, and flame retardant sheath as an integral part of its makeup. This feature adds an extra layer of protection and safety to our product. When you choose our Indoor Optical Cable, you're not only investing in exceptional performance and ease of use, but you're also placing a premium on safety. Make Fcjoptic your go-to choice for superior fiber optic solutions that won't let you down.
