High-Quality GJFJTC8Y 8C Optical Fiber Distribution Cable

Short Description:

Description

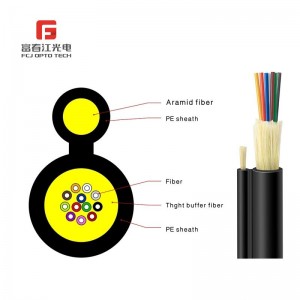

GJFJTC8Y cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm or ф600μm fibers,twisting fibers with aramid yarn into the circular cable core,then steel wires assembled into the shape 8 PE sheath.

Characteristics

·Small diameter, light weight and friendly
·High tensile strength of aramid yarn meet the requirements of self-supporting and reduce the installation cost.
·Good mechanical and temperature performance.

Standards

·GJFJTC8Y cable complies with Standard YD/T11155-2011,YDT 1770-2008,IEC794 etc.

Optical Parameters

G.652

G.655

50/125μm

62.5/125μm

Attenuation

 (+20℃)

@850nm

≤3.0dB/km

≤3.0dB/km

@1300nm

≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

≤0.36dB/km

@1550nm

≤0.22dB/km

≤0.23dB/km

Bandwidth
Class A)

@850

≥500MHZ·km

≥500MHZ·km

@1300

≥1000MHZ·km

≥600MHZ·km

Numerical Aperture

0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength

≤1260nm

≤1480nm



Technical Parameters

Cable Type

Fiber Count

Cable Diameter

mm

Cable Weight
Kg/km

Tensile Strength

Long/Short Term

N

Crush Resistance

Long/Short

Term
N/100m

Bending Radius
Static/Dynamic

mm

GJFJTC8Y

2

3.5×5.5

19

200/400

100/200

30D/15D

GJFJTC8Y

4

4.0×6.0

26

200/400

100/200

30D/15D

GJFJTC8Y

6

5.0×7.0

30

200/400

100/200

30D/15D

GJFJTC8Y

8

6.0×9.0

32

200/400

100/200

30D/15D

GJFJTC8Y

12

6.5×9.5

40

200/400

100/200

30D/15D

·Storage/Operating temperature:-20℃~﹢60℃





Product Detail

Product Tags

Unveiling the upgraded and re-engineered GJFJTC8Y 8C distribution optical cable – an innovative product in our superior Optical Fiber range. This is not just a fiber optic cable; it's a pathway to enhanced digital communication. Precision-crafted with 8F SM G657A2 fibers, this figure 8 optical cable stands out in the market for its elite performance and reliability. Previously, our renowned outdoor fiber optic cable GYXTC8Y GYXTC8S was applauded for its 12Core 24core, providing outstanding support and performance. But the GJFJTC8Y 8C Optical Fiber cable takes it a notch higher with its advanced features and improved build. Our indoor communication cable stands as an example of our dedication to quality. It's available with 24, 48, 96, and 144 cores multi-mode fiber optic cable distribution, each offering a tight buffer for protection and optimum performance. A product of meticulous research and engineering, these cables offer excellent reliability and high-speed data transmission.







  • Previous:
  • Next:



  • At Fcjoptic, we believe in pushing boundaries. We relentlessly strive to combine cutting-edge technology and top-quality materials to produce a product that not only meets the global standards but also exceeds them. Our GJFJTC8Y 8C Optical Fiber cable is a testament to our commitment towards quality and innovation. The cable is designed with an understanding of the need for consistent high-speed data flow in today's digital age. It's a one-stop solution for all your Optical Fiber needs. Embrace an elevated experience of data transmission with our GJFJTC8Y 8C Optical Fiber cable. It's not just a product; it's a pathway to a seamless, connected digital world. Fcjoptic continues to be a pioneer in optical communication technology, and our products reflect our passion and dedication. Experience the best with Fcjoptic.
