High-Quality Tight Buffer 2.0mm Cable for Outdoor Telecommunication Needs

High-Quality Tight Buffer 2.0mm Cable for Outdoor Telecommunication Needs
  • High-Quality Tight Buffer 2.0mm Cable for Outdoor Telecommunication Needs
  • High-Quality Tight Buffer 2.0mm Cable for Outdoor Telecommunication Needs
  • High-Quality Tight Buffer 2.0mm Cable for Outdoor Telecommunication Needs
  • High-Quality Tight Buffer 2.0mm Cable for Outdoor Telecommunication Needs
  • High-Quality Tight Buffer 2.0mm Cable for Outdoor Telecommunication Needs
  • High-Quality Tight Buffer 2.0mm Cable for Outdoor Telecommunication Needs

Short Description:

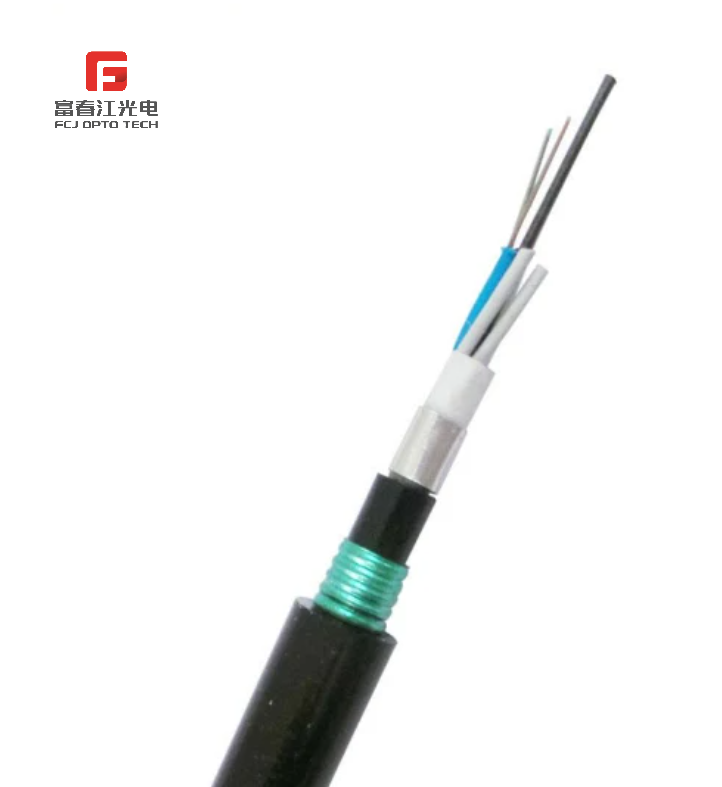

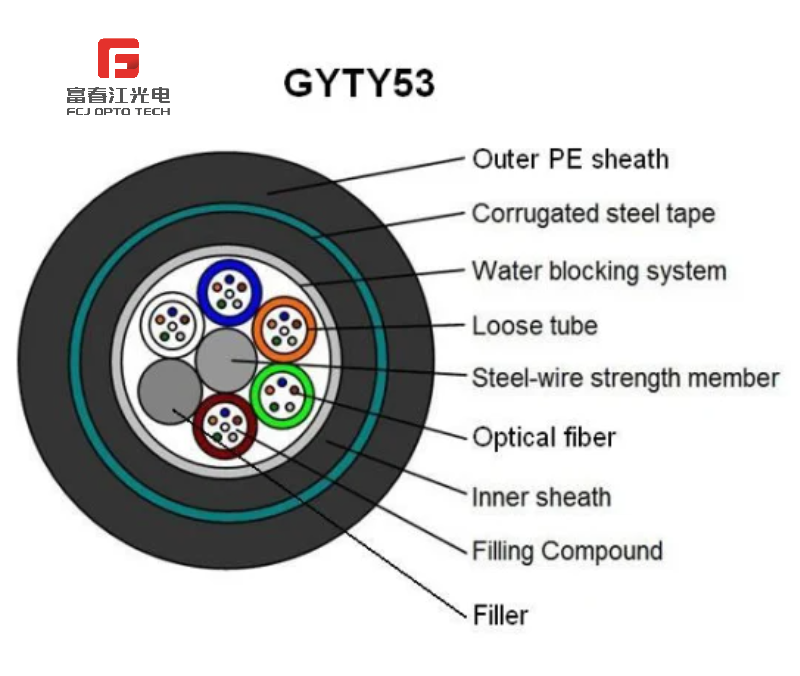

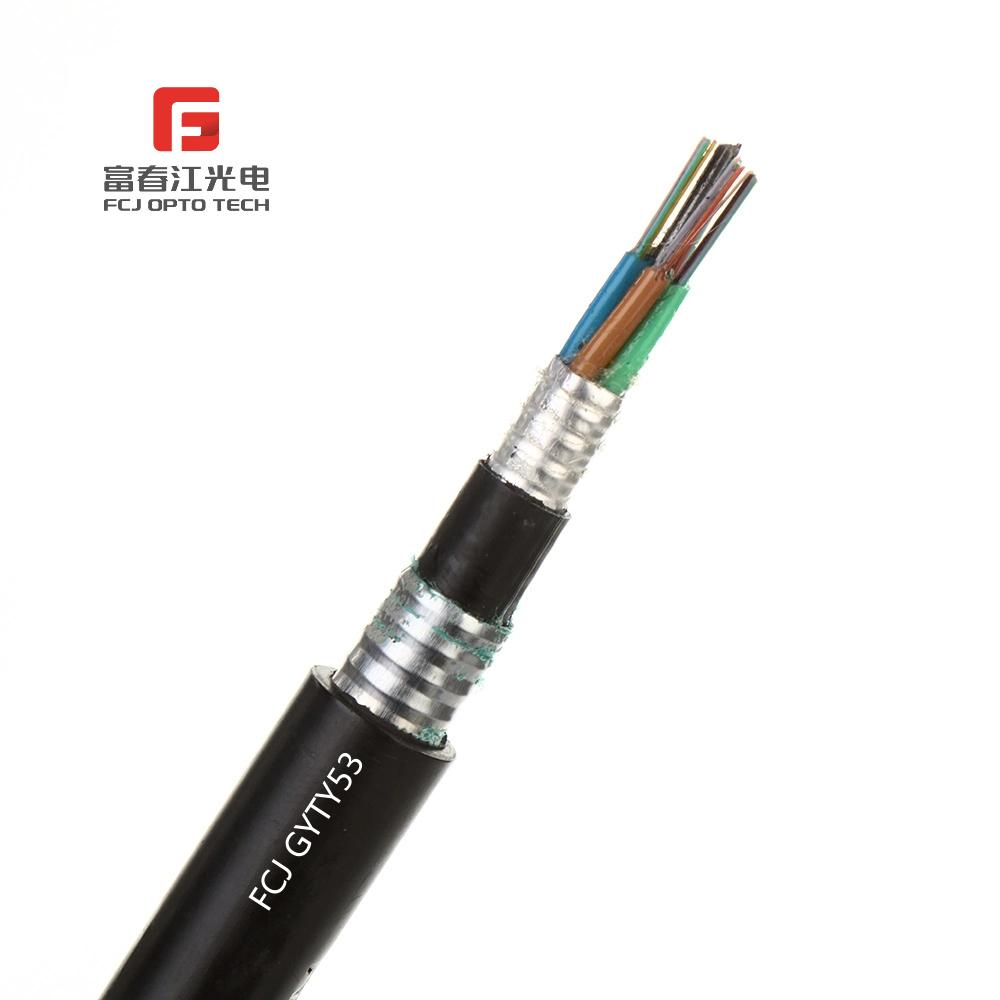

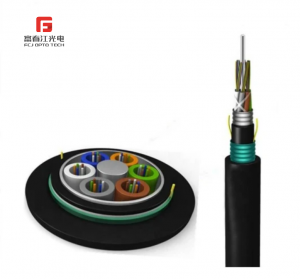

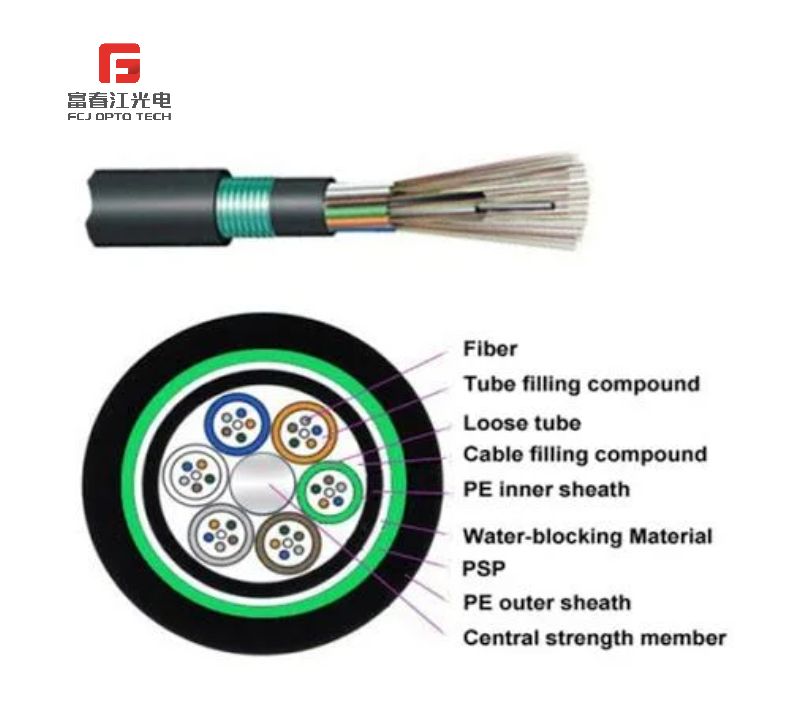

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.



Product Detail

Product Tags

Welcome to Fcjoptic, leading providers of telecommunication solutions. We are thrilled to introduce you to our premium Tight Buffer 2.0mm Cable, specifically designed for outdoor applications. Our Tight Buffer 2.0mm Cable is notable for its robust and superior quality. It promises exceptional mechanical performance and outstanding resistance against varying temperatures. Composed of a high-strength loose tube, it's remarkably resistant to hydrolysis. Moreover, the special tube filling compound used in its construction ensures the integral protection of fiber at every stage of its operation. In the design and engineering of this cable, we've prioritized crush resistance and flexibility. As a result, the cable can withstand tough conditions while offering the flexibility needed for easy and safe installation. One major feature of our Tight Buffer 2.0mm Cable is its superior watertight abilities. A series of intricate measures have been taken to deliver this quality. A steel wire is used as the central strength member to guarantee robustness and durability. We also employ a loose tube filling compound and ensure a 100% cable core filling. Combined with a PSP that enhances moisture-proof capabilities, and water-blocking material, these measures ensure the cable remains unaffected by water under any circumstances.

g (2)公司简介



Characteristics

Good mechanical and temperature performance

High strength looes tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Crush resistance and flexibility

The following measures are taken to ensure the cable watertight:

Steel wire used as the central strength member

Loose tube filling compound

100% cable core filling

PSP enhancing moisture-proof

Water-blocking material



Standards

GYTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.



Optical Characteristics

G.652

G.655

50/125μm

62.5/125μm

Attenuation

(+20℃)

@850nm

≤3.0 dB/km

≤3.0 dB/km

@1300nm

≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km

@1550nm

≤0.22 dB/km

≤0.23dB/km

Bandwidth

 (Class A)

@850nm

≥500 MHz·km

≥200 MHz·km

@1300nm

≥1000 MHz·km

≥600 MHz·km

Numerical Aperture

0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength

≤1260nm

≤1480nm



Technical Parameters

Cable Type

Fiber Count

Tubes

Fillers

Cable Diameter

mm

Cable Weight kg/km

Tensile Strength

Long/Short Term N

Crush Resistance

Long/Short Term

N/100mm

Bending Radius

Static/Dynamic

mm

GYTY53-2~6

2~6

1

5

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-8~12

8~12

2

4

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-14~18

14~18

3

3

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-20~24

20~24

4

2

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-26~30

26~30

5

1

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-32~36

32~36

6

0

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-38~48

38~48

4

1

14.6

206

1000/3000

1000/3000

10D/20D

GYTY53-50~60

50~60

5

0

14.6

206

1000/3000

1000/3000

10D/20D

GYTY53-62~72

62~72

6

0

15.0

215

1000/3000

1000/3000

10D/20D

GYTY53-74~84

74~84

7

1

16.4

254

1000/3000

1000/3000

10D/20D

GYTY53-86~96

86~96

8

0

16.4

254

1000/3000

1000/3000

10D/20D

GYTY53-98~108

98~108

9

1

17.8

290

1000/3000

1000/3000

10D/20D

GYTY53-110~120

110~120

10

0

17.8

290

1000/3000

1000/3000

10D/20D

GYTY53-122~132

122~132

11

1

19.5

340

1000/3000

1000/3000

10D/20D

GYTY53-134~144

134~144

12

0

19.5

340

1000/3000

1000/3000

10D/20D

GYTY53-146~216

146~216

19.5

345

1000/3000

1000/3000

10D/20D

Storage/Operating Temperature : -40℃ to + 70℃

合作的大牌 1 (6) 微信图片_20230925134155 详情页（认证） 生产流程







  • Previous:
  • Next:


    • Furthermore, our Tight Buffer 2.0mm Cable complies with both Standard YD/T 901-2001 and IEC 60794-1. This means it meets and exceeds essential industry standards, ensuring your telecommunication needs are met with apex-quality products. Our Tight Buffer 2.0mm Cable is a testament to Fcjoptic's commitment to deliver highly efficient and durable telecommunication infrastructure. Trust us to equip you with cables that will keep your communication uncompromised, unbeaten and constantly flowing, no matter the conditions.
