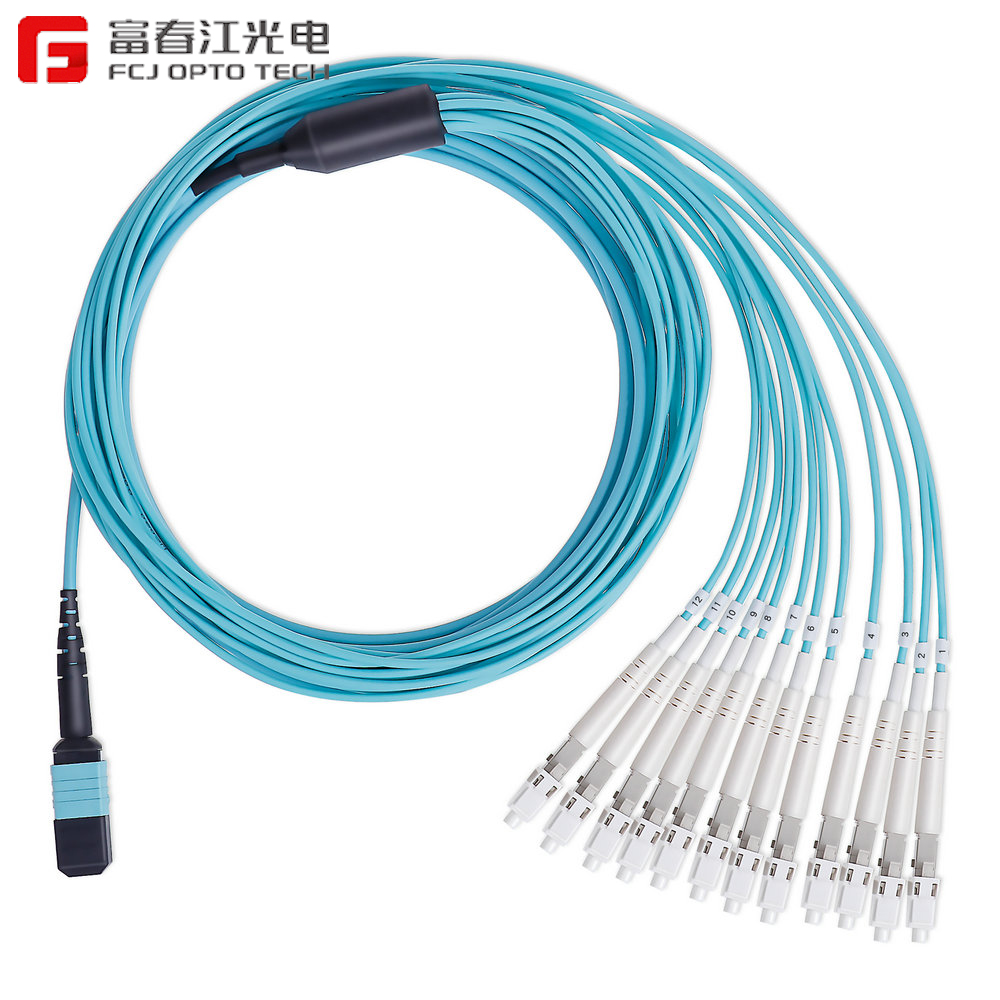

High-Speed 12-core Singlemode Fiber Optic Cable with MPO/MTP & LC SC Fast Connector

Short Description:

Optical fiber active connector is a plug-in connector based on a single-core plug and adapter.According to the connector, it can be divided into FC, SC, LC, ST, MU, etc.PC, UPC, APC, etc.Suitable for optical fiber transceiver, router, switch, optical terminal machine and other equipment with optical ports.Fiber connectors are widely used and play an important role in optical fiber links.

Send email to us

Product Detail

Product Tags

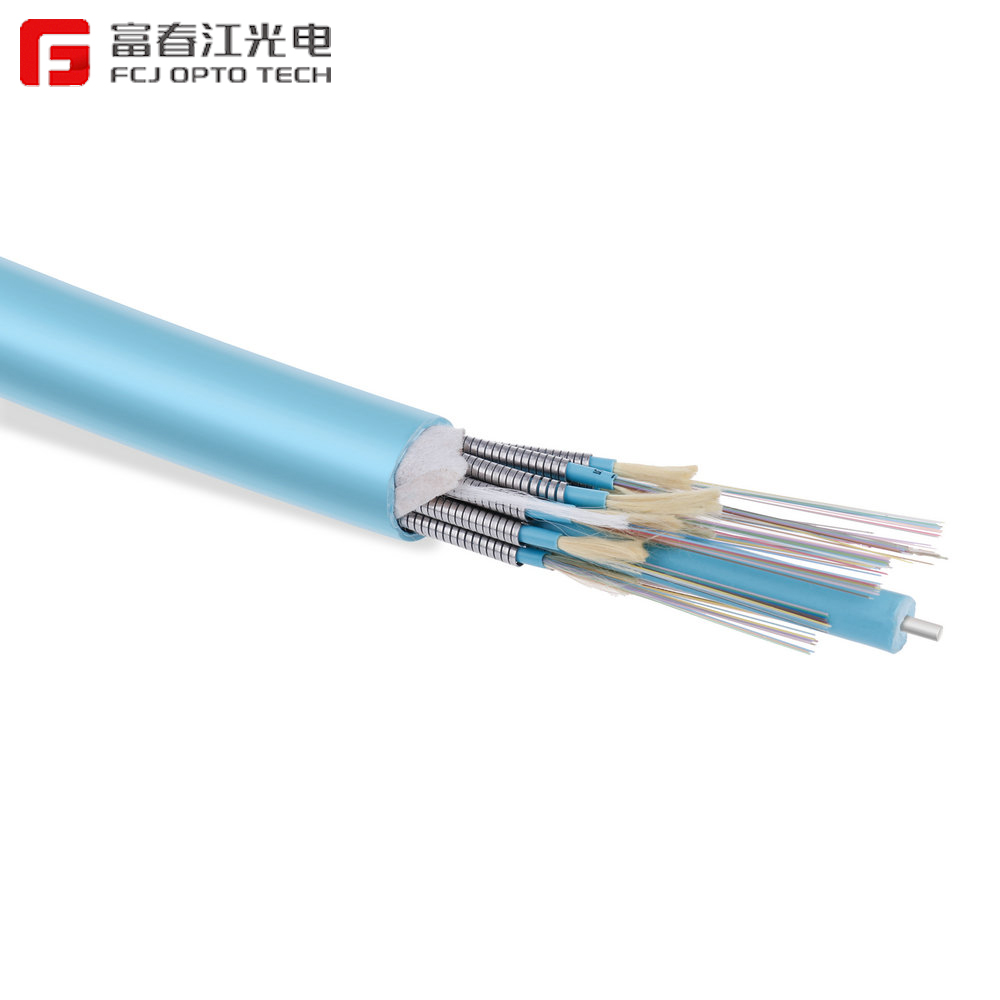

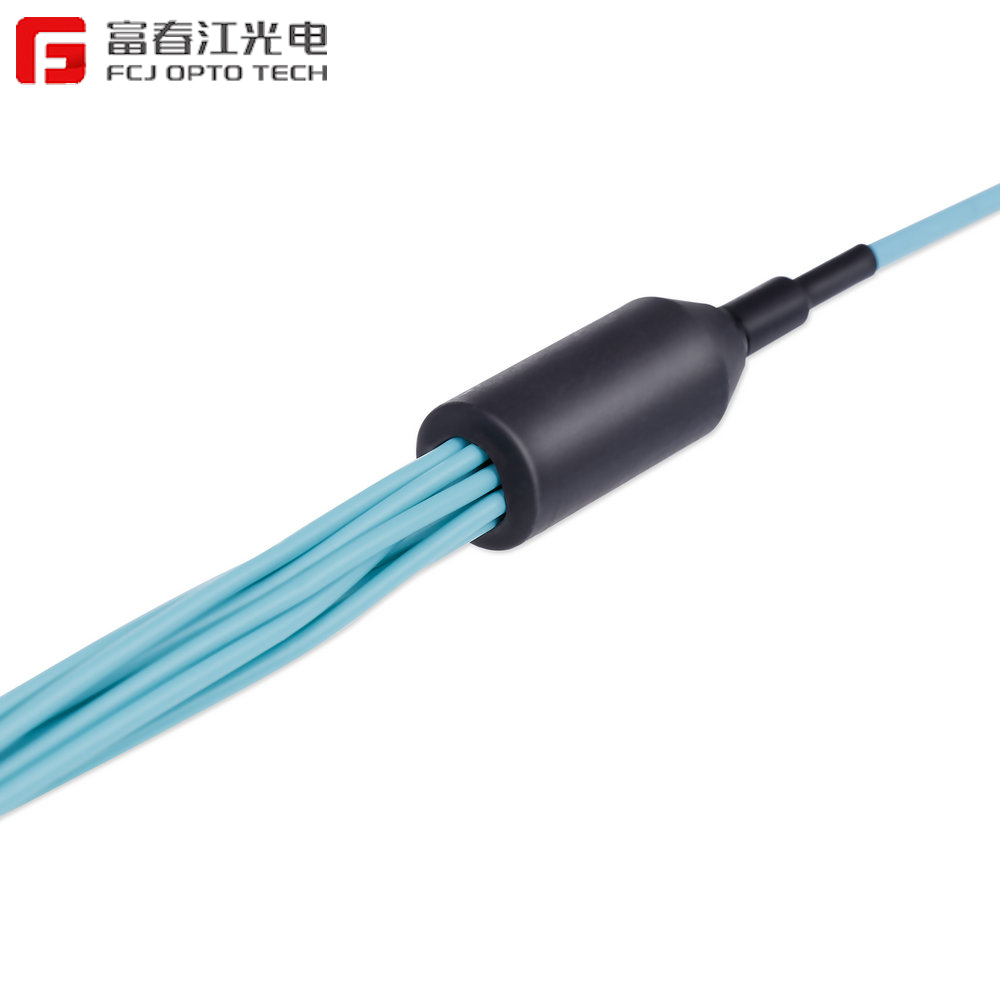

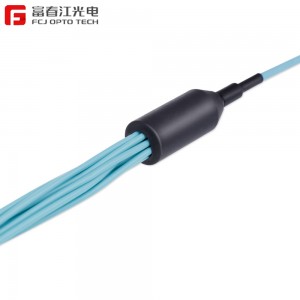

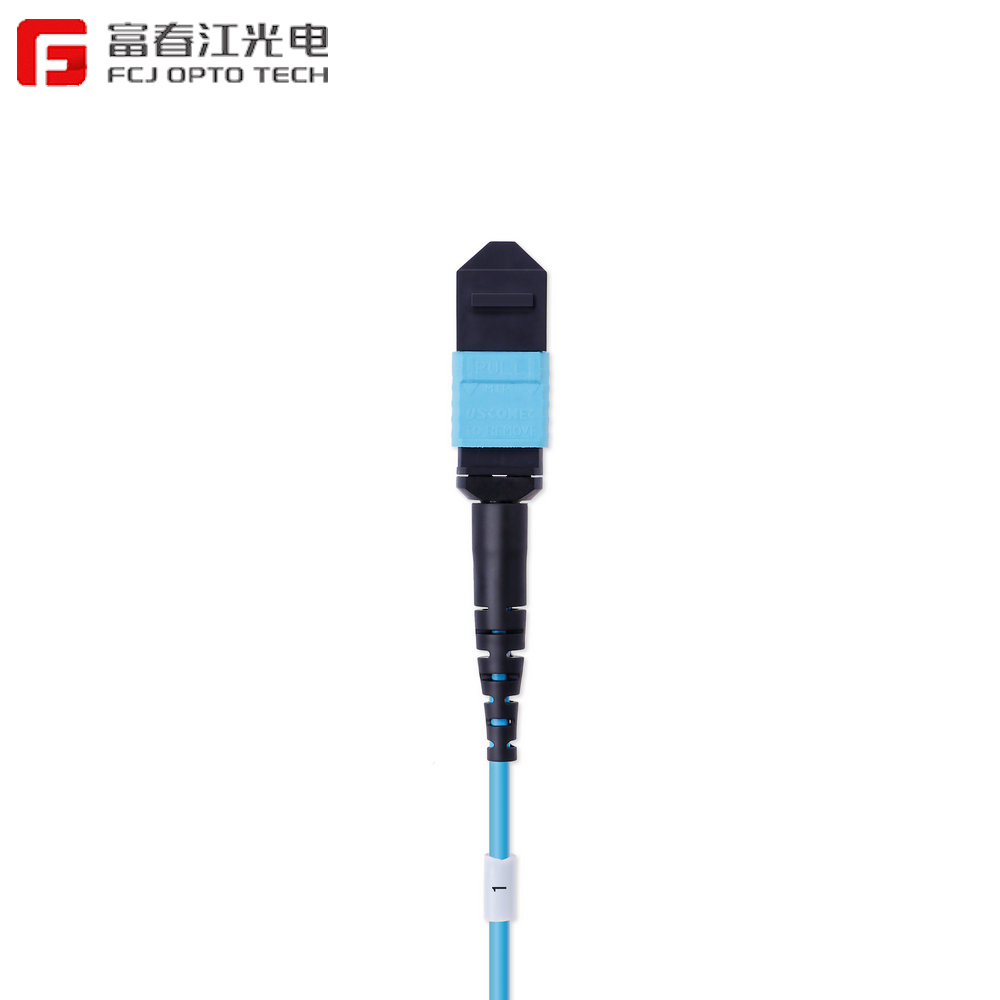

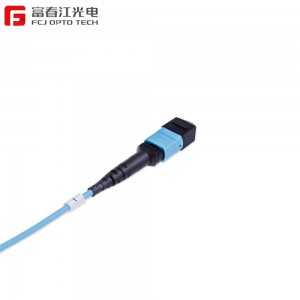

Experience unmatched performance with Fcjoptic's Singlemode 12-core Fiber Optic Cable. Designed for fast, seamless, and reliable data transmission, our Fiber Optic Cable comes with MPO/MTP LC SC fast connectors, making it the ideal solution for all your communication requirements. This high-quality Fiber Optic Cable is engineered for single-mode applications, making it perfect for long-distance communication channels. The 12-core design guarantees maximum efficiency, ensuring that there is no compromise on the quality or speed of data transmission. The Fiber Optic Cable features an MPO/MTP pigtail 2.0mm, which allows for easy termination and effortless connectivity. The cable also comes equipped with an SC UPC fast connector patch cord, known for its exceptional push-pull locking mechanism, making plug-ins and adapter usage easier than ever. Our Fiber Optic Cable offers flexibility with its compatibility, accommodating both LC and SC connectors. With the SC/PC connector, users can expect the convenience of a secure plug-in interface, providing stable and reliable links for all usage scenarios. At Fcjoptic, we take pride in offering the finest quality products. Our Fiber Optic Cable is no exception. We are committed to delivering superior performance, coupled with durability and reliability. Every cable undergoes stringent quality checks, ensuring that it meets the highest industry standards.

Product Description

Single mode single core connector SC/PC

The SC connector is a plug-in connector based on a single-pin plug and adapter.It features a rectangular structure and an elastic clip locking mechanism, including a coupling pin and a pin that is elastic in the direction of the optical axis.The pin has a typical outer diameter of 2.500 mm; the plug has a plug-in switch that can be used as a limit for the positioning and position of the connector and the mating component.The light centering device of the connector is a rigid inner bore or an elastomeric sleeve.

Single mode single core connector LC/PC

The LC connector is a plug-in connector that consists of a small single-pin plug and adapter.It features a rectangular structure and an elastic clip locking mechanism, including a coupling pin and a pin that is elastic in the direction of the optical axis.The typical outer diameter of the pin is nominally 1.25 mm; the plug has a plug-in switch that can be used as a limit for positioning and the relative position between the connector and the mating component.The light centering device of the connector is a rigid inner bore or an elastomeric sleeve.

Characteristics

Feature	SM , MM				SM , MM
Type of connector	MPO/MTP 12f/24f				FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
Diameter(mm)	2.0/3.0/3.6 etc				0.9,2.0,3.0
Polish	MM UPC	MM APC	SM UPC	SM APC	MM UPC	MM APC	SM UPC	SM APC
Insert Loss	le;0.35dB	le;0.35dB	le;0.35dB	le;0.35dB	le;0.3dB	le;0.3dB	le;0.3dB	le;0.3dB
Return Loss	ge;25dB	ge;25dB	ge;50dB	ge;60dB	ge;25dB		ge;50dB	ge;60dB
Exchangeability	le;0.2dB				le;0.2dB
Repeatability	le;0.2dB				le;0.2dB
Temperature range（℃）	-40~+85				-40~+85

Previous: FCJ Factory for All Dielectric Self-Supporting Aerial Fiber Optical Cable ADSS Cable (ADSS)

Next: ODM Factory 12f 24f MPO/MTP to LC Single Mode Fiber Optical Breakout Cable

Ideal for both high-speed data networks and telecommunications platforms, our Fiber Optic Cable provides a fantastic return on investment by ensuring uninterrupted connectivity and superior data transmission speeds. Opt for Fcjoptic's Singlemode 12-core Fiber Optic Cable and experience seamless communication like never before. So, whether you're upgrading your network infrastructure or setting up a new one, Fcjoptic's Singlemode 12-core Fiber Optic Cable with MPO/MTP LC SC Fast Connectors is the perfect choice, promising speed, efficiency, and high performance.
