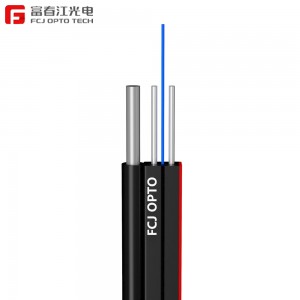

LSZH Patch Cord - FTTH Bow-Type GJXFH(V) Steel Stripped Fiber
Characteristics
·Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
·Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
·Single steel wire or messengers as the additional strength member ensures good performance of tensile strength;
·Simple structure, light weight and high practicability;
·Novel flute design, easily strip and splice, simplify the installation and maintenance;
·Low smoke, zero halogen and flame retardant sheath.
Optical Characteristics
G.652 | G.657 | 50/125μm | 62.5/125μm | ||
Attenuation | @850nm | ≤3.5 dB/km | ≤3.5 dB/km | ||
@1300nm | ≤1.5 dB/km | ≤1.5 dB/km | |||
@1310nm | ≤0.40 dB/km | ≤0.40 dB/km | |||
@1550nm | ≤0.30 dB/km | ≤0.30dB/km | |||
Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
@1300nm | ≥500 MHz·km | ≥500 MHz·km | |||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable Cut-off Wavelength | ≤1260nm | ≤1260nm | |||
Technical Parameters
Fiber count | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static /Dynamic mm |
1 | (2.0±0.2)×(5.0±0.2) | 20 | 300/600 | 1000/2200 | 20/40 |
2 | (2.0±0.2)×(5.0±0.2) | 20 | 300/600 | 1000/2200 | 20/40 |
4 | (2.0±0.2)×(5.0±0.2) | 20 | 300/600 | 1000/2200 | 20/40 |
6 | (2.5±0.2)×(6.0±0.2) | 26 | 300/600 | 1000/2200 | 20/40 |
8 | (2.5±0.2)×(6.0±0.2) | 26 | 300/600 | 1000/2200 | 20/40 |
12 | (3.0±0.2)×(7.0±0.2) | 34 | 300/600 | 1000/2200 | 20/40 |
Storage/Operating Temperature : -20℃ to + 60℃
Two parallel Fiber Reinforced Plastic (FRP) strength members have been integrated to provide extensive resistance to crush, thereby protecting the integrity of the fiber. Alongside this, we have supplemented the structure with a single steel wire or messengers as an additional strength member, upholding a pronounced tensile strength. The simple structure of our LSZH Patch Cord is made complete with a light weight design and high practicability, making it a must-have for modern day communication pipelines. The cable encapsulates a novel flute design that is easy to strip and splice, simplifying both the installation and maintenance processes. We understand the importance of safety, hence the LSZH Patch Cord is set within a Low Smoke Zero Halogen (LSZH) and flame retardant sheath which promises safety even under the most demanding circumstances. Choose our LSZH Patch Cord fitted FTTH Bow-Type Steel Stripped Fiber Optic Cable – where superior performance and safety go hand in hand.
