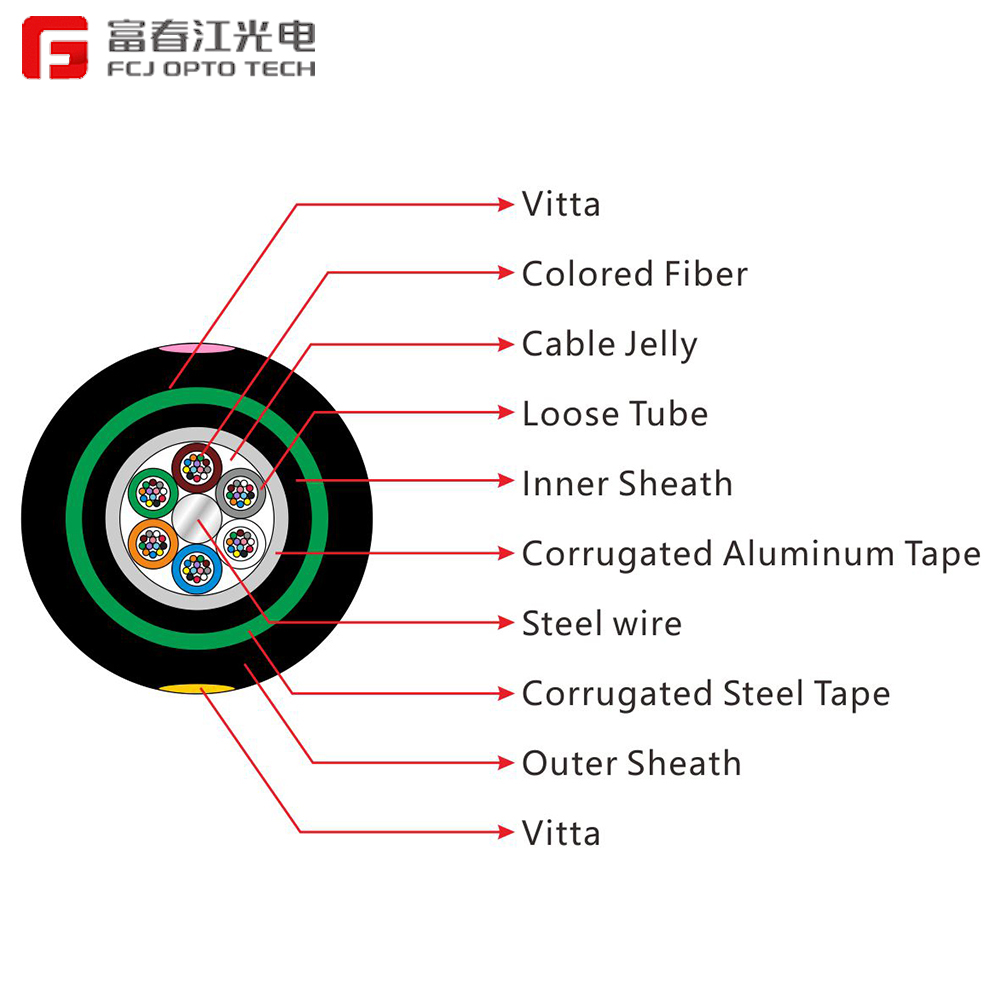

ODM Famous Aerial Optical Cable Manufacturers –GYTA53 Outdoor Double Armored Double Jackets Stranded Loose Tube Fiber Optic Cable – FCJ OPTO Detail:
Characteristics
· Good mechanical and temperature performance
· High strength looes tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
- PSP enhancing moisture-proof
- Water-blocking material
Standards
GYTY53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
Optical Characteristics
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
@1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
@1550nm | ≤0.22 dB/km | ≤0.23 dB/km | |||
Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
@1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
Technical Parameters
Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter mm | Cable Weight kg/km | Tensile Strength Long/Short Term N | Crush Resistance Long/Short Term N/100mm | Bending Radius Static/Dynamic mm |
GYTY53-2~6 | 2~6 | 1 | 5 | 13.8 | 188 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-8~12 | 8~12 | 2 | 4 | 13.8 | 188 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-14~18 | 14~18 | 3 | 3 | 13.8 | 188 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-20~24 | 20~24 | 4 | 2 | 13.8 | 188 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-26~30 | 26~30 | 5 | 1 | 13.8 | 188 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-32~36 | 32~36 | 6 | 0 | 13.8 | 188 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-38~48 | 38~48 | 4 | 1 | 14.6 | 206 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-50~60 | 50~60 | 5 | 0 | 14.6 | 206 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-62~72 | 62~72 | 6 | 0 | 15.0 | 215 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-74~84 | 74~84 | 7 | 1 | 16.4 | 254 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-86~96 | 86~96 | 8 | 0 | 16.4 | 254 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-98~108 | 98~108 | 9 | 1 | 17.8 | 290 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-110~120 | 110~120 | 10 | 0 | 17.8 | 290 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-122~132 | 122~132 | 11 | 1 | 19.5 | 340 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-134~144 | 134~144 | 12 | 0 | 19.5 | 340 | 1000/3000 | 1000/3000 | 10D/20D |
GYTY53-146~216 | 146~216 | 19.5 | 345 | 1000/3000 | 1000/3000 | 10D/20D |
Storage/Operating Temperature : -40℃ to + 70℃
