ODM Famous Optic Fiber Patch Cord Cable Supplier – GYXTPY FTTH Drop Cable Fiber-Optic FTTH Service Internet Cable – FCJ OPTO

Short Description:

Send email to us

Product Detail

Product Tags

Our personnel are generally within the spirit of continuous improvement and excellence, and using the excellent top quality goods, favorable rate and superior after-sales expert services, we try to win every customer's believe in for 14mm Microduct Connector Fittings Fibre Optic Cables with High Quality China Factory, Single Mode ADSS 24 Core Fiber Optic Cable, Optical Fiber Communication Connectors, Seeing believes! We sincerely welcome the new clients abroad to build organization associations and also hope to consolidate the associations while using the long-established prospects.

ODM Famous Optic Fiber Patch Cord Cable Supplier –GYXTPY FTTH Drop Cable Fiber-Optic FTTH Service Internet Cable – FCJ OPTO Detail:

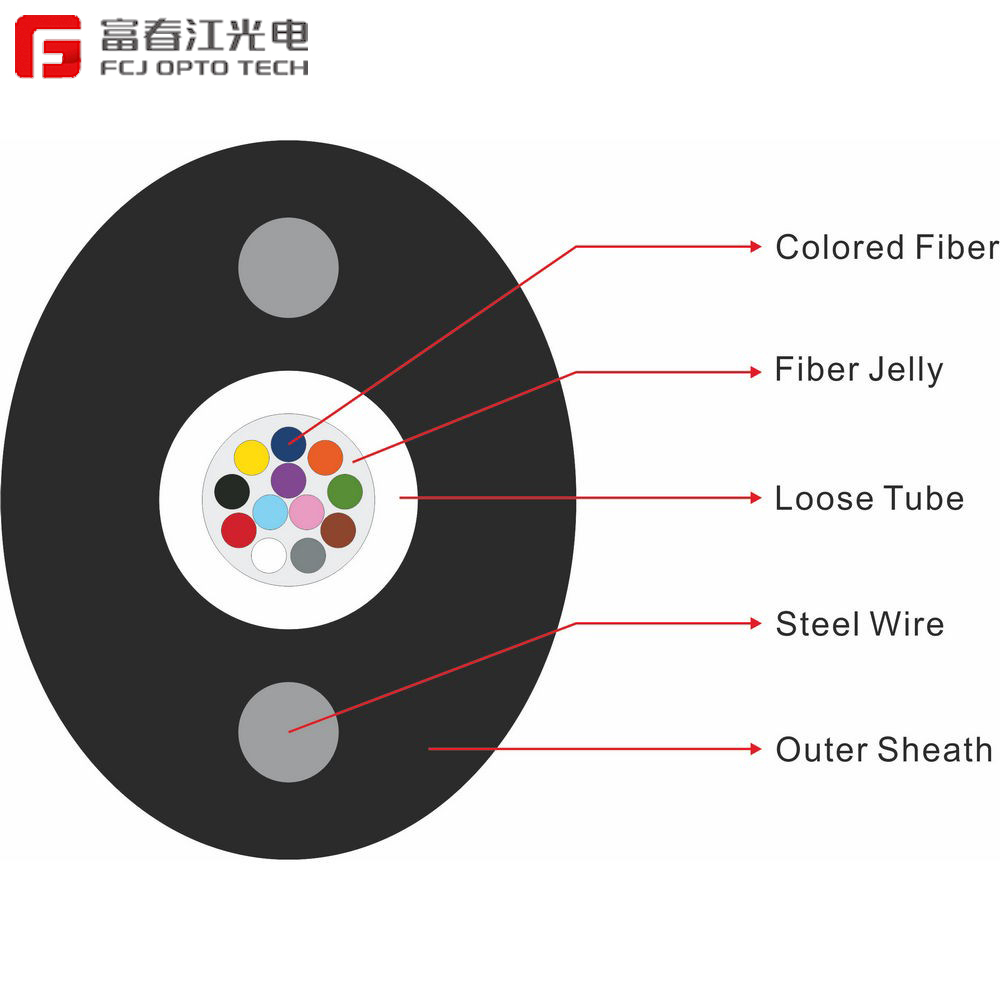

Characteristics

·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·Inexpensive and can reduce operating costs
·Two parallel steel wires ensure tensile strength
·Small diameter, light weight and friendly installation
·Long delivery length

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation(+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.00 dB/km	≤0.00dB/km
	@1550nm	≤0.00 dB/km	≤0.00dB/km
Bandwidth(Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth(Class A)	@1300nm			≥500 MHz·km	≥500 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Technical Parameters

Fiber count

Cable Diameter

Cable

Weight

kg/km

Tensile

Strength

Long/Short

Term N

Crush Resistance

Long/Short

Term N/100mm

Bending Radius Static /Dynamic mm

GYXTPY

1~12

5.0*6.0

250/500

300/1000

12.5D/25D

Storage/Operating Temperature : : -40℃ – + 70℃

Product detail pictures:
