ODM Famous Patch Cord Manufacturers –GJAFKV FRP Indoor Multi-Core LSZH Armored Bunch Fiber Optical Cable In Cord – FCJ OPTO Detail:
Characteristics
Miniature cable, high-strength aramid reinforced, high-performance jacket material protection.
Bending radius is small, light weight, soft, flexible, easy to follow.
Flat wire armored to improve the optical cable compression and anti-rat ability.
Has good mechanical and environmental performance.
Flame retardant or non-flame retardant outer jacket to provide good safety protection.
Application
Various conventional connector products. Pigtail, jumper.
Optical communication equipment room, optical patch panels, fiber to the desktop and other light even.
Optical connection of optical equipment, instruments, etc.
Indoor horizontal wiring, vertical wiring within the building; LAN network, multi-information point connection.
Long-distance, outdoor, building wiring, trunking optical hybrid optical connection.
The backbone of the tail cable, access to the equipment inside the building.
Small installation space and occasional wiring.
Standards
· GJAFKV cable reference YD / T 2488-2013, IECA-596, GR-409, IEC794 and other standards; In line with UL certification OFNR, OFNP requirements.
Optical Characteristics
G.652 | G.655 | 50/125 μm | 62.5 / 125 μm | ||
Attenuation | @ 850nm | ≤3.0dB / km | ≤3.0dB / km | ||
@ 1300nm | ≤1.0dB / km | ≤1.0dB / km | |||
@ 1310nm | ≤0.36dB / km | - | |||
@ 1550nm | ≤0.22dB / km | ≤0.23dB / km | |||
Bandwidth | @ 850 | ≥ 500MHZ · km | ≥ 500MHZ · km | ||
@ 1300 | ≥1000MHZ · km | ≥600MHZ · km | |||
Numerical aperture | 0.200 ± 0.015NA | 0.275 ± 0.015 NA | |||
Cable cut-off wavelength | ≤1260nm | ≤1480nm |
Technical Parameters
Cable Type | Fiber Count | Tight Diameter | Cable Diameter | Cable Weight | AllowableTensile Strength Long/Short Term N | Allowable pressure Crush Resistance | Bending Radius |
GJFJV+SV | 72 | 3.0 | 14.0 | 42 | 300/750 | 200/1000 | 20D / 10D |
| GJFJV+SV | 144 | 3.0 | 18.0 | 65 | 300/750 | 200/1000 | 20D / 10D |
Environmental Characteristics
| Transport Temperature | －20℃～＋60℃ |
| Storage Temperature | －20℃～＋60℃ |
| Installation Temperature | －5℃～＋50℃ |
| Operating Temperature | －20℃～＋60℃ |
Storage/Operating temperature:-20℃～﹢60℃

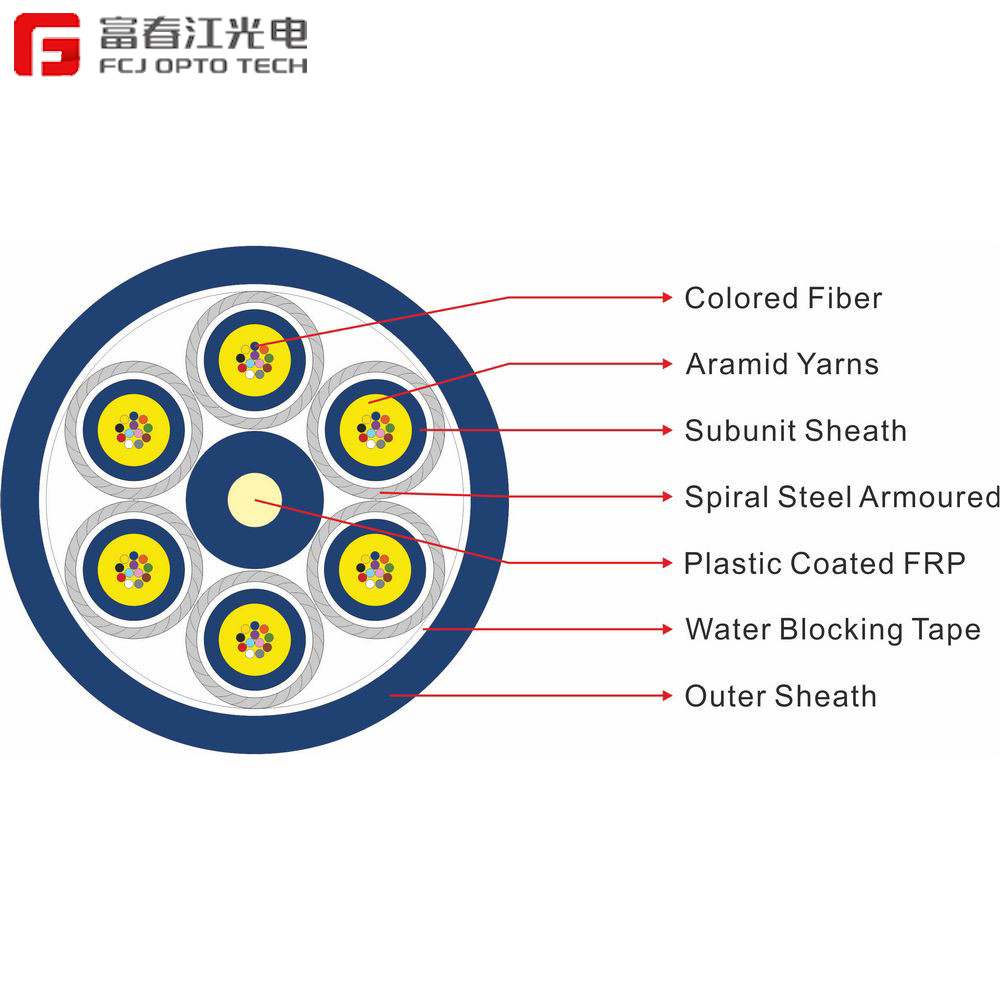

Product detail pictures:
