OEM China Hengtong Optic Fiber And Cable - 24 Core Indoor GJFJH Break-Out Optical Fiber Cable From FCJ OPTO TECH – FCJ OPTO Detail:

Characteristics

·Small diameter, light weight,flame retardant,excellent strippability
·Low-attenuation,High flexibility
·No need for transition connector box or pigtail between tight buffer fiber and cable,low cost with installation cause to it’s no needs to clean the water-proofing ointment.

Application

·Suitable for Indoor distribution
·Pigtail jumper, patch cord
·Optical connection of Communication equipment and connection machine.
·Floor installation, maintenance friendly

Standards
·GJFJV cable complies with Standard YD/T1258.2-2009、ICEA-596、GR-409、IEC794 etc; and meets with the requirements of UL approval for OFNR and OFNP.

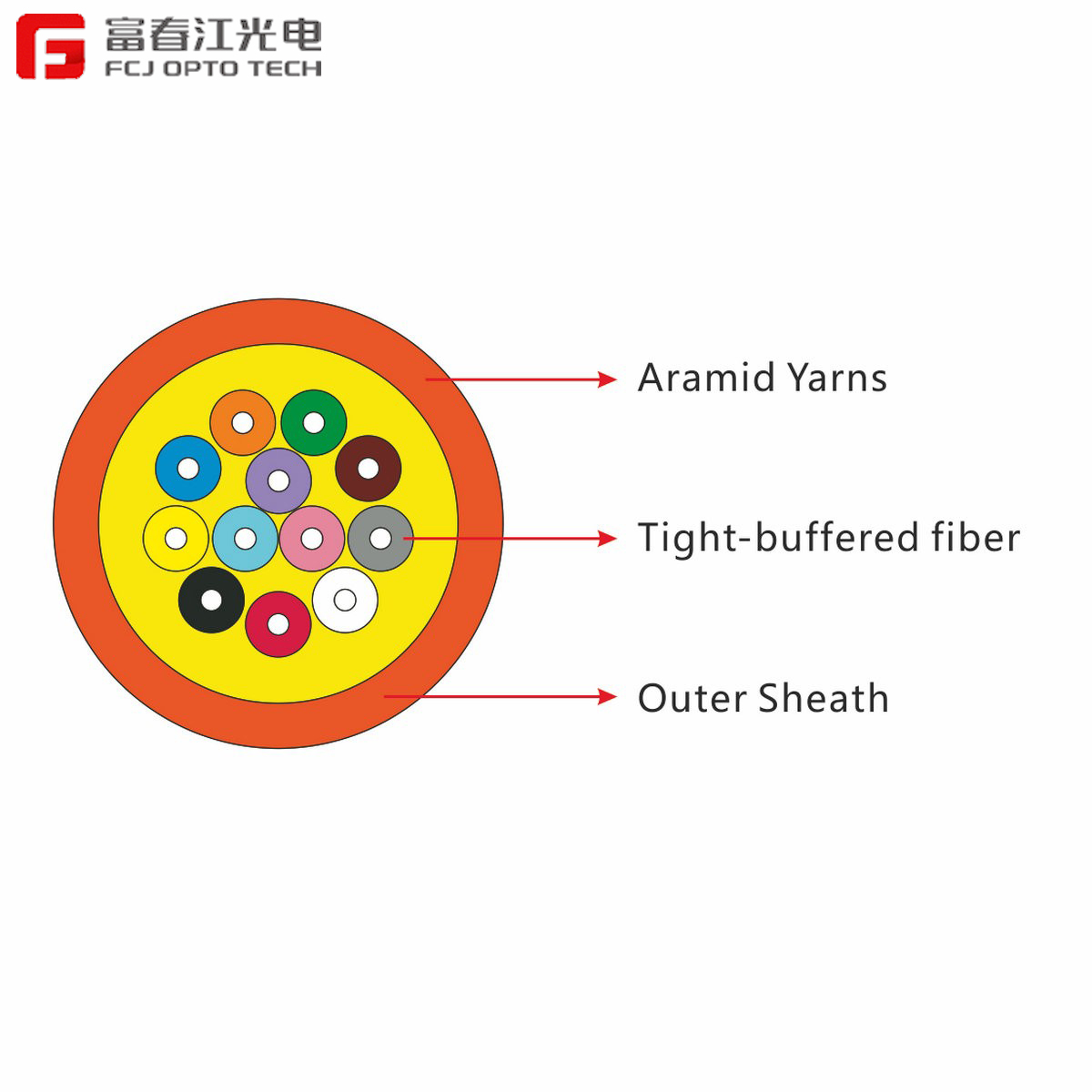

Cable Code

	MPC-02	MPC-04	MPC-06	MPC-08	MPC-10	MPC-12
Cable Diameter(mm)	4.1±0.25	4.8±0.25	5.1±0.25	6.2±0.25	6.5±0.25	6.8±0.25
Cable Weight(kg/km)	12	20	24	29	32	35
Tight Buffer Fiber Diameter	900±50μm

Technical Parameters

Tensile Strength	Long Term	80N	60	50
Tensile Strength	Short Term	150N	120	100
Crush Resistance	Long Term	100N/100mm	100N/100mm	100N/100mm
Crush Resistance	Short Term	500N/100mm	500N/100mm	500N/100mm
Bending Radius	Dynamic	20XD	20XD	20XD
Bending Radius	Static	10XD	10XD	10XD

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0dB/km	≤3.0dB/km
	@1300nm			≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km	≤0.36dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth Class A）	@850			≥500MHZ·km	≥200MHZ·km
Bandwidth Class A）	@1300			≥1000MHZ·km	≥600MHZ·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Environmental Characteristics

Transport Temperature	-20℃～﹢60℃
Storage Temperature	-20℃～﹢60℃
Installation Temperature	-5℃～﹢50℃
Operating Temperature	-20℃～﹢60℃

Storage/Operating temperature:-20℃～﹢60℃
