OEM High Quality Fiber Patch Cord Factories –Steel Strand Drop Cable Strand Steel Wires Supporting Fig 8 Aerial Fiber Optic Cable – FCJ OPTO Detail:

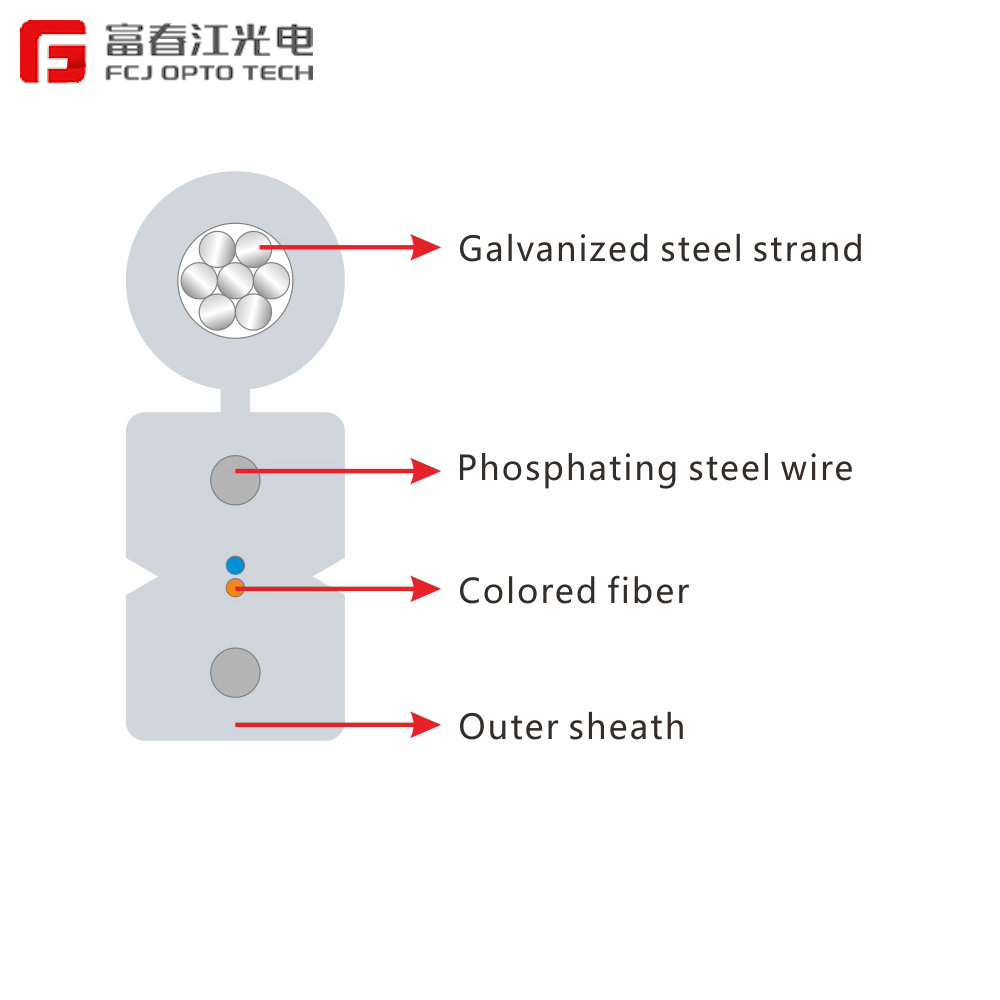

Characteristics

·Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
·Two parallel steel strength members ensure good performance of crush resistance to protect the fiber;
·Single steel wire or messenger as the additional strength member ensures good performance of tensile strength;
·Simple structure, light weight and high practicability;
·Novel flute design, easily strip and splice, simplify the installation and maintenance;
·Low smoke, zero halogen and flame retardant sheath.

Optical Characteristics

		G.652	G.657	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.5 dB/km	≤3.5 dB/km
	@1300nm			≤1.5 dB/km	≤1.5 dB/km
	@1310nm	≤0.40 dB/km	≤0.40 dB/km
	@1550nm	≤0.30 dB/km	≤0.30dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥500 MHz·km	≥500 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1260nm

Technical Parameters

Fiber count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
1	2.0±0.2*5.2±0.2	21.5	300/600	1000/2200	20/40
2	2.0±0.2*5.2±0.2	21.5	300/600	1000/2200	20/40
4	2.0±0.2*5.2±0.2	21.5	300/600	1000/2200	20/40
6	2.5±0.2*6.0±0.2	27.5	300/600	1000/2200	20/40
8	2.5±0.2*6.0±0.2	27.5	300/600	1000/2200	20/40
12	3.0±0.2*7.0±0.2	35.5	300/600	1000/2200	20/40

Storage/Operating Temperature : -20℃ to + 60℃

Product detail pictures:
