OEM High Quality Fiber Patch Cord Suppliers –GYTC8S Figure 8 FTTH Fibra Optica Cable With Steel Messenger GYTC8S – FCJ OPTO Detail:

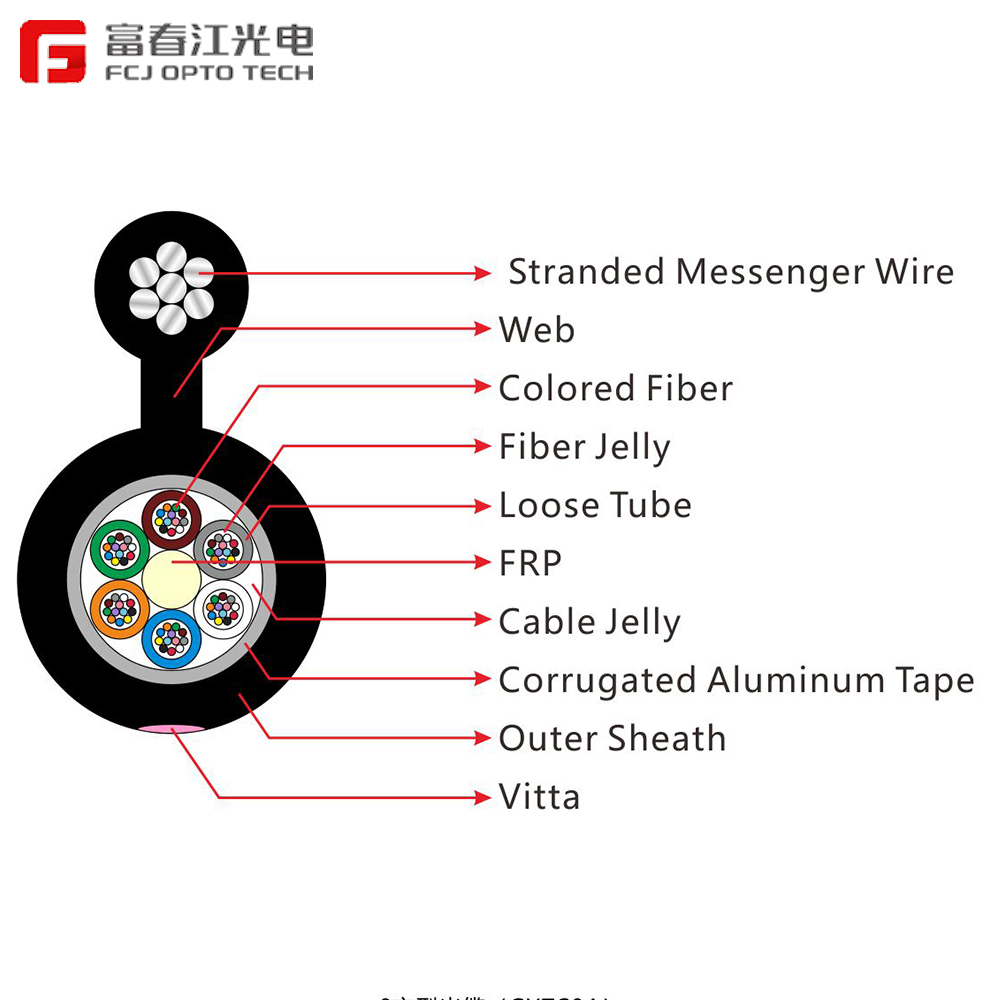

Characteristics

· High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· The following measures are taken to ensure the cable watertight:

Steel wire used as the central strength member
Loose tube filling compound
100% cable core filling
APL moisture barrier

Standards
GYTC8S cable complies with Standard YD/T 1155-2001 as well as IEC 60794-1.

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Tubes	Fillers	Cable Diametermm	Cable Weight kg/km	Tensile StrengthLong/ShortTerm N	Crush ResistanceLong/Short TermN/100mm	Bending RadiusStatic/Dynamicmm
GYTC8A-2~6	2~6	1	4	9.5×18.3	218	600/1500	300/1000	10D/20D
GYTC8A-8~12	8~12	2	3	9.5×18.3	218	600/1500	300/1000	10D/20D
GYTC8A-14~18	14~18	3	2	9.5×18.3	218	600/1500	300/1000	10D/20D
GYTC8A -20~24	20~24	4	1	9.5×18.3	218	600/1500	300/1000	10D/20D
GYTC8A-26~30	26~30	5	0	9.5×18.3	218	600/1500	300/1000	10D/20D

Storage/Operating Temperature : -40℃ to + 70℃
