OEM High Quality Fiber Pigtails Manufacturers –Fast Delivery Jet Micro Cable SingleMode Fiber Optic Cable For Duct&Aerial Installation – FCJ OPTO Detail:

Characteristics

·Non-mental design can prevent the cable from radio interference and magnetic wave interference
·Specially designed compact structure is good at preventing loose tubes from shrinking
·Aramid yarn ensures good performance of tensile strength
·Loose tube filling compound ensure good moisture resistance performance
·Good flexibility
·High dense fiber packed, small diameter and light weight; it’s the better option for blowing installation process

Application
Adopted to backbone network, access network and fiber to the home.

Optical Characteristics

		G.652	G.655	50/125μm OM2	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Cable Diameter(mm)	Cable Weight kg/km	Tensile StrengthLong/Short Term N	Crush ResistanceLong/Short Term N/100mm	Bending RadiusStatic/Dynamicmm
JET	2~12	6.0+0.2	30	150/300	200/500	15D/30D

Storage/Operating Temperature : -40℃ to + 70℃

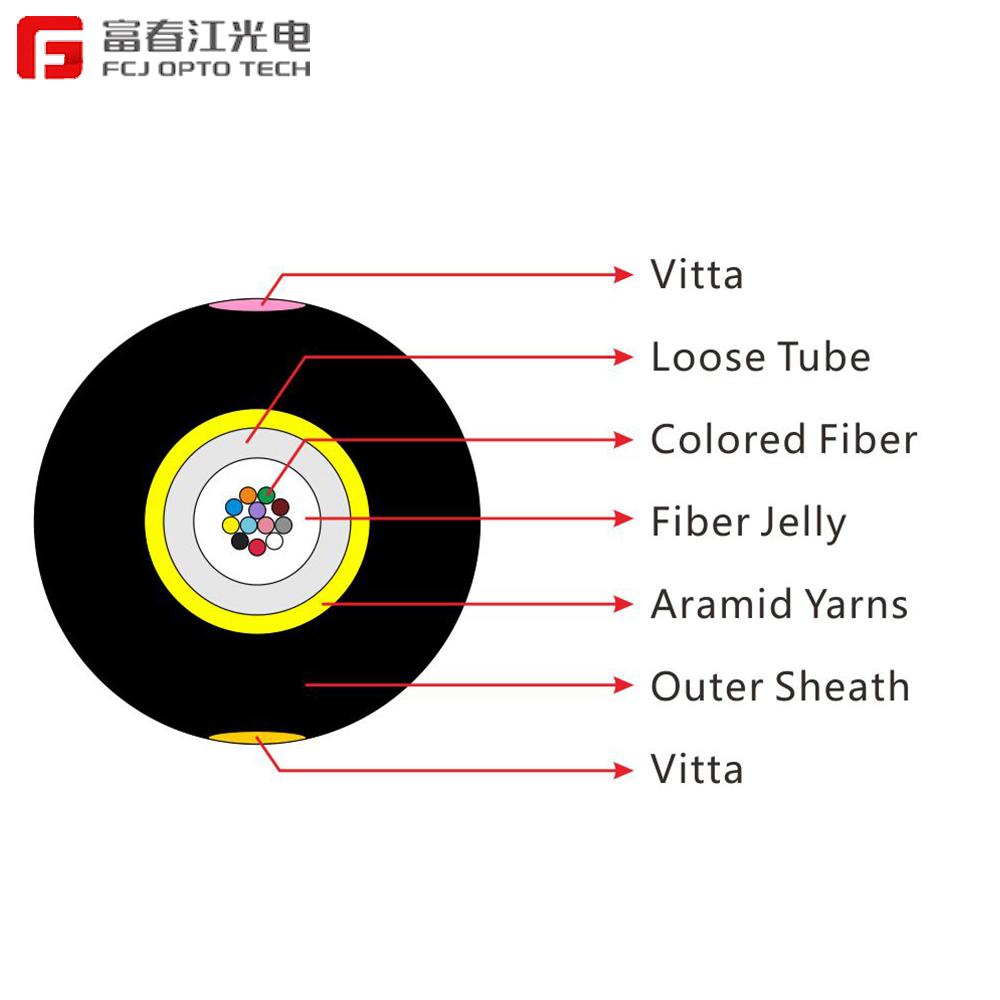

Product detail pictures:
