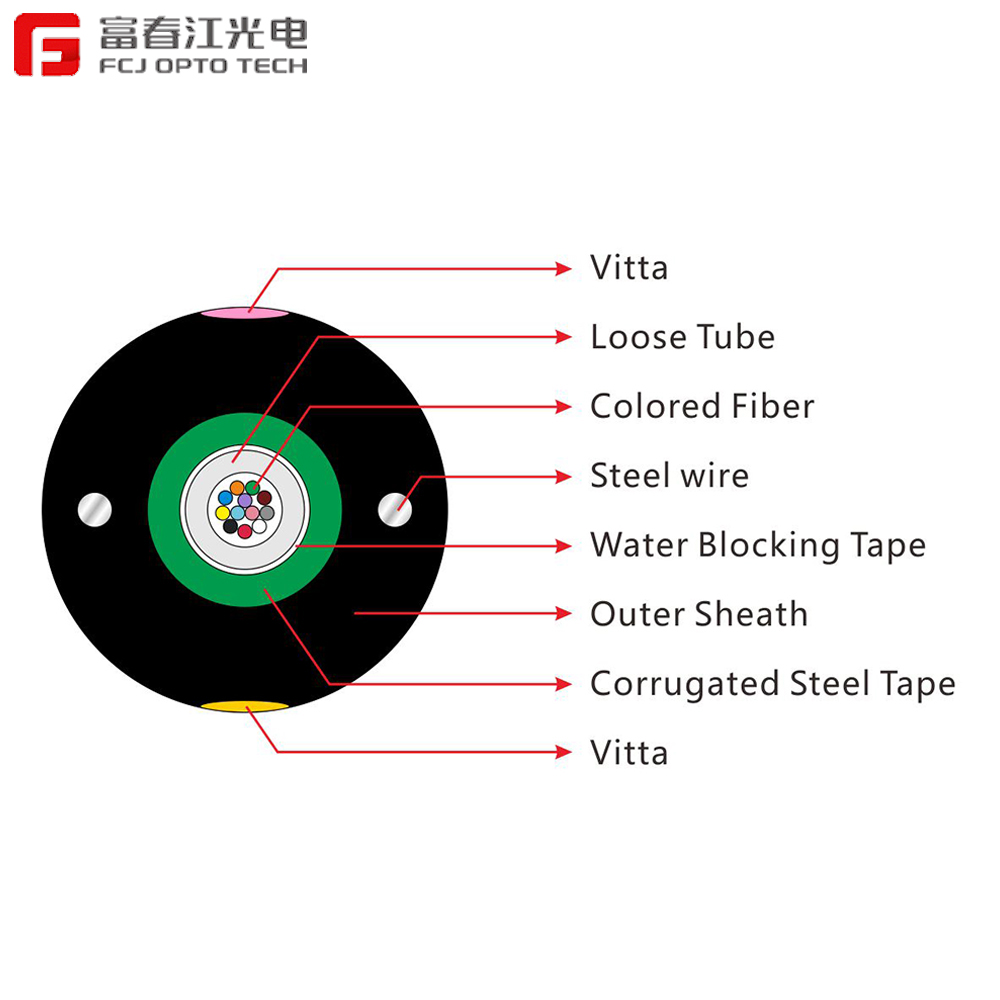

OEM High Quality Optical Fiber Suppliers –GYXTW Outdoor Duct Aerial Uni-Tube Light-Armored Cable – FCJ OPTO Detail:

Characteristics

· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PSP enhancing moisture-proof
· Two parallel steel wires ensure tensile strength
· Small diameter, light weight and friendly installation
· Long delivery length

Standards
GYXTW cable complies with Standard YD/T 769-2003.

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Cable Diameter(mm)	Cable Weight kg/km	Tensile StrengthLong/Short Term N	Crush ResistanceLong/Short Term N/100mm	Bending RadiusStatic/Dynamicmm
GYXS/GYXTW-2~12	2~12	10.0	105	600/1500	300/1000	10D/20D
GYXS/GY XTW-2~12	2~12	10.6	124	1000/3000	1000/3000	10D/20D
GYXS/GY XTW-14~24	14~24	12.5	149	1000/3000	1000/3000	10D/20D
GYXS/GY XTW-26~36	26~36	14.0	190	1000/3000	1000/3000	10D/20D
GYXS/GY XTW-38~48	38~48	15.0	216	1000/3000	1000/3000	10D/20D

Storage/Operating Temperature : -40℃ to + 70℃
