OEM High Quality Steel Armored Fiber Optic Cable Manufacturer – Stainless Steel Tube Mini Figure 8 Cable Optic Fiber Cable – FCJ OPTO
OEM High Quality Steel Armored Fiber Optic Cable Manufacturer –Stainless Steel Tube Mini Figure 8 Cable Optic Fiber Cable – FCJ OPTO Detail:

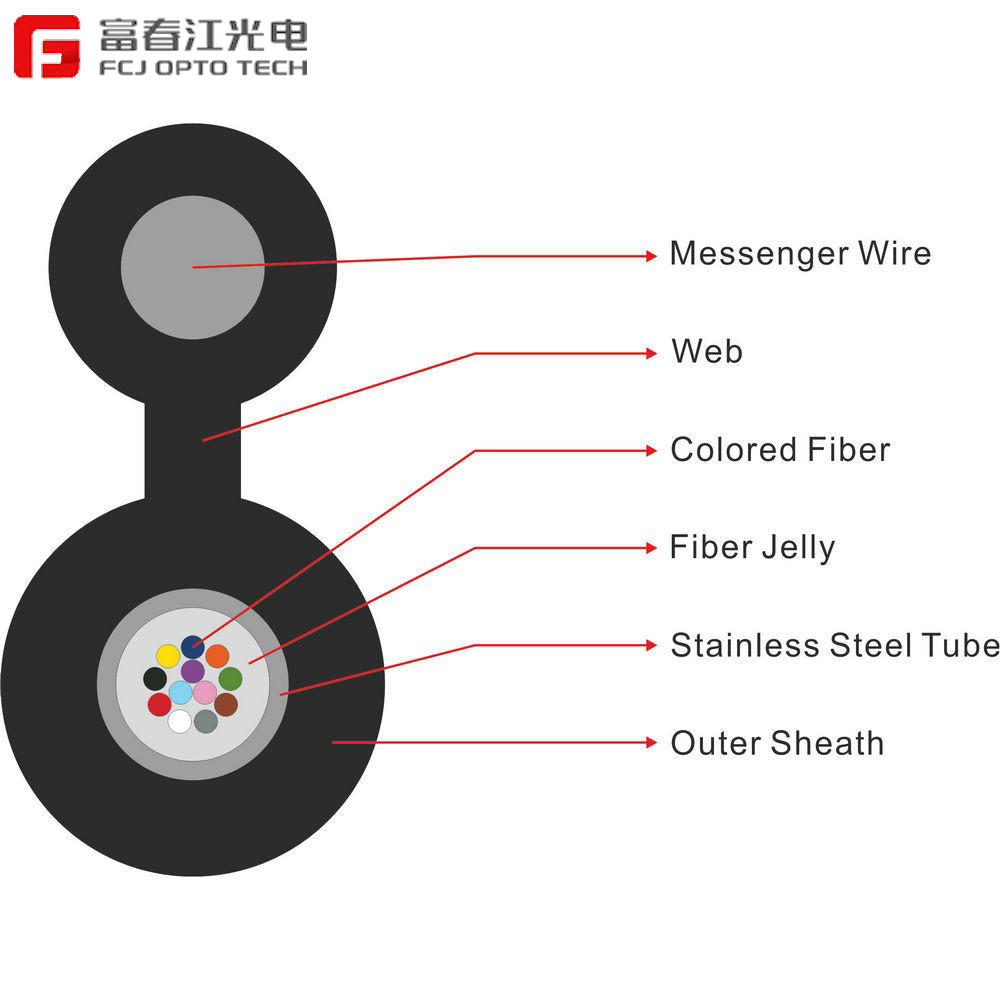

Construction
Single mode, multimode optical fiber, maximum of 24 cores F-SST LSZH, PE, or PA jacketing, anti-ultraviolet radiation
Small size and low weight
Good mechanical performance, withstanding the tensile force and force and super pressure
Waterproof, moisture-proof, anti-rodents,no rusty
Resistance to acid, alkali, salt corrsion
Non-toxic, flame retardant, fire and explosion proof
Outstanding high and low temperature performances
Characteristics
Small size and low weight
Good mechanical performance, withstanding the tensile force and force and super pressure
Waterproof, moisture-proof, anti-rodents,no rusty
Resistance to acid, alkali, salt corrsion
Non-toxic, flame retardant, fire and explosion proof
Outstanding high and low temperature performances
With excellent fire resistance, it can keep communication in the fire(800℃) more than 2 hours with normal optical fiber
Application
Indoor cabling
Pipe laying
Ground slot laying
Temperature sensing cable
Fire monitoring
Temperature Range
Operating temperature: -60~+80℃
Storage temperature: -60~+80℃
Min.Bending Radius
Static=10D
Dynamic=20D
Replacement
GYTA, GYTS, GYXTW, GYXTC8S, GYTC8S
Fiber core number | structure size | Cable weight | Allowable tensile force (N) | Allowing crush force (N) | ||
Pipe diameter | Wire diameter | Cable diameter | kg / km | Long-term / short-term | Long-term / short-term | |
4 | 1.35 | 0.3 | 3.95 | 18.4 | 500/1000 | 2000/4000 |
6 | 1.5 | 0.45 | 4.6 | 26.3 | 1000/2000 | 2000/4000 |
8 | 1.8 | 0.45 | 4.9 | 29.2 | 1000/2000 | 2000/4000 |
12 | 2 | 0.45 | 5.1 | 31.2 | 1000/2000 | 2000/4000 |
24 | 2.4 | 0.5 | 6 | 41.1 | 1000/2000 | 2000/4000 |
Product detail pictures:
