Optic Fiber Patch Cord Cable: Advanced Steel Strand Drop Cable Reinforcement

Short Description:

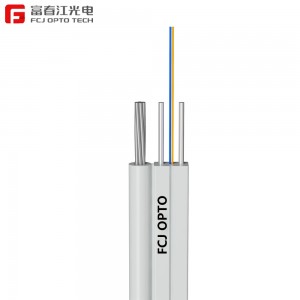

The Steel Strand optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (STEEL) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or colored LSZH sheath.

Send email to us

Product Detail

Product Tags

Introducing our Optic Fiber Patch Cord Cable - a uniquely designed Steel Strand Drop Cable that ensures smooth, high bandwidth transmissions and exceptional communication properties. This technologically advanced cable is equipped with special low-bend sensitivity fibers, making it a reliable solution for high speed data transfer requirements. Our Optic Fiber Patch Cord Cable is ingeniously engineered with parallel steel strength members to enhance its crush resistance. This protective feature safeguards the optic fibers contained within, reducing the risk of signal loss and extending the lifespan of the cable. To further ensure durability and tensile strength, our cable includes an additional single steel wire or messenger. This cable is not only robust but also light, thanks to its simple structure. Its practical design lends itself to ease of installation, making it an ideal option for various applications. Furthermore, it comes with a novel flute design that simplifies the stripping and splicing process, further reducing installation time and maintenance requirements.

Characteristics

·Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
·Two parallel steel strength members ensure good performance of crush resistance to protect the fiber;
·Single steel wire or messenger as the additional strength member ensures good performance of tensile strength;
·Simple structure, light weight and high practicability;
·Novel flute design, easily strip and splice, simplify the installation and maintenance;
·Low smoke, zero halogen and flame retardant sheath.

Optical Characteristics

		G.652	G.657	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.5 dB/km	≤3.5 dB/km
	@1300nm			≤1.5 dB/km	≤1.5 dB/km
	@1310nm	≤0.40 dB/km	≤0.40 dB/km
	@1550nm	≤0.30 dB/km	≤0.30dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥500 MHz·km	≥500 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1260nm

Technical Parameters

Fiber count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
1	2.0±0.2*5.2±0.2	21.5	300/600	1000/2200	20/40
2	2.0±0.2*5.2±0.2	21.5	300/600	1000/2200	20/40
4	2.0±0.2*5.2±0.2	21.5	300/600	1000/2200	20/40
6	2.5±0.2*6.0±0.2	27.5	300/600	1000/2200	20/40
8	2.5±0.2*6.0±0.2	27.5	300/600	1000/2200	20/40
12	3.0±0.2*7.0±0.2	35.5	300/600	1000/2200	20/40

Storage/Operating Temperature : -20℃ to + 60℃

Previous: GYXTPY FTTH Drop Cable Fiber-Optic FTTH Service Internet Cable

Next: GJAFKV FRP Indoor Multi-Core LSZH Armored Bunch Fiber Optical Cable In Cord

Made to ensure safety without compromising performance, the sheath of our Optic Fiber Patch Cord Cable is low smoke, zero halogen, and flame retardant. This ensures that the cable is safe to use in all environments, including high-risk ones. Our Optic Fiber Patch Cord Cable represents a fusion of ground-breaking technology, quality materials, and innovative design. It is intended to provide you with a reliable, high-performance solution for all your communication and data transfer needs. Experience unparalleled transmission, unmatched durability, and easy installation with our Optic Fiber Patch Cord Cable.
